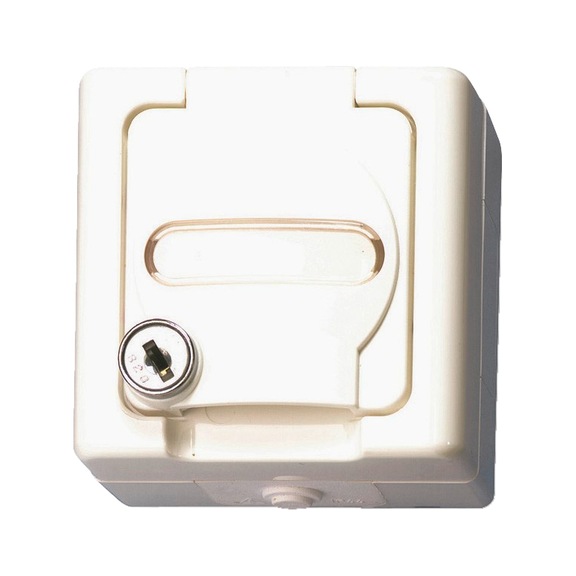

ELMO^® AP damp room earthing contact plug socket With lock

Name: ELMO ® AP damp room earthing contact plug socket With lock
Brand: Würth
SKU: 0978801028

Socket with lock ELMO, surface-mounted, damp room
SKT-SM-(LOCK-2)-WHITE-16A-250V
ELMO

Art.-no. 0978801028

EAN 4050642529243

All versions

Specification

Including labelling field

Inlet openings on all four sides of the housing

Through-wiring possible in all directions (vertical and horizontal)

Screwless terminals for line cross-sections up to 2.5 mm²

Large, installation-friendly wiring area

Saves time during installation

Technical information


Colour	Arctic white
Closure	2
Nominal voltage	250 V/AC
Nominal current	16 A
IP protection class	IP 44
Width	78 mm
Height	78 mm
Depth	60 mm
Min./max. temperature conditions	-20 to 110 °C
Material	Polycarbonate - PC
Halogen-free	Yes
PVC-free	Yes

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Additional accessory:

Product

Description

Quantity

Price
/PU

Connection piece, 1-way For Elmo<SUP>®</SUP> AP damp-room switch series

Connection piece, 1-way For Elmo® AP damp-room switch series

CONPCE-F.SM-1FLD-WHTE

ELMO

Art.-no. 0978801020

x 10 pcs

Cable infeed, 2-way For ELMO<SUP>®</SUP> AP damp room switches

Cable infeed, 2-way For ELMO® AP damp room switches

CBLINLET-F.SM-2FLD-WHTE

ELMO

Art.-no. 0978801021

x 10 pcs
