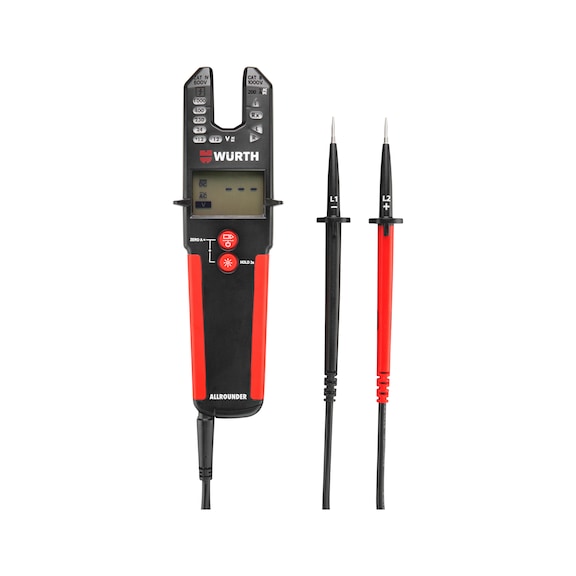

ELMO TRMS voltage/current tester ALLROUNDER
TEST-(MULTI-TEST-ALLROUNDER)-(LCD-LED)
Art.-no. 5634003220
EAN 4068362380426
Register now and access more than 125,000 products
Accurate voltage readout and high degree of safety
- LED indicator for voltage ranges: (-12 V) to (+12 V), 24 V, 230 V, 400 V, 1,000 V (low voltage up to 24 V with green LEDs, dangerous voltages from 230 V with red LEDs for clear warning signals)
- Backlit LCD display for optimum readability
- Automatic voltage detection for safe working
Versatile measurement and testing functions
- Single-pole phase tester with acoustic alarm
- Contactless voltage tester (3-stage) incl. cable break detection
- Two-pole rotating field display
- High-resistance and low-resistance continuity test (L Rx activated via function button)
- Diode test for additional diagnostic options
Convenience and efficiency
- Data-hold function (briefly freezes the measured value on the LCD display)
- Vibrating alarm and beep for additional safety
- LED torch function for optimum illumination of the work area
- Auto power off for longer battery life
Robust and practical
- 19 mm one-handed operation (safety sockets)
- Captive protective measuring probe cap incl. mount for both measuring probe adapters (4 mm) and insulating sleeves (protective caps)
- Removable test leads for easier device storage
- Compact design fits in every tool belt pouch
- Fork opening (jaw opening): 15 mm
Scope of delivery
- ALLROUNDER incl. test leads with measuring probe cap
- 2 x measuring probe adapter 4 mm
- 2 x insulating sleeve, black
- Batteries not included in the scope of delivery
- Current measurement: Due to their design, open-type fork clamps are likely to produce greater measurement errors than closed current clamps. For the highest possible accuracy, ensure the electrical conductor is as centred as possible within the fork, aligned with the two horizontal markings. Measurement accuracy may vary significantly if the conductor is not in this position, especially where low currents are concerned.
- TRMS stands for True Root Mean Square and describes a measurement method which is indispensable for accurate measurement of alternating current and voltage using electrical devices, particularly multimeters. Conventional measuring devices often display only the average value of sinusoidal voltages, whereas TRMS devices calculate the true RMS value. This gives more accurate readings for modern, non-sinusoidal waveforms, such as those produced by electronic equipment.
CAT III 1,000 V/CAT IV 600 V, Test standard DIN EN 61243-3:2014
Datasheets(X)
- Vehicle electrics (E-mobility), electrical engineering, photovoltaics, solar
Display | LED/LCD |
Min./max. voltage range AC | 0.1-1000 V/AC |
Min./max. voltage range DC | 0.1-1500 V/DC |
Min./max. frequency | 1 / 800 Hz |
Continuity testing, min./max. electrical resistance | 0-500 kOhm |
Diode testing | Yes |
PELV display | Visual, Vibrating |
Display min./max. electrical resistance display | 0.001-100 kOhm |
IP protection class | IP 64 |
Overvoltage protection category | CAT III/1000 V, CAT IV/600 V |
Min./max. temperature conditions | 0 to 40 °C |
Battery designation | Micro AAA; LR03; AM4 |
Number of rechargeable batteries/batteries | 2 PCS |
Length x width x depth | 197 x 63 x 36 mm |
Material | ABS/PC, PVC, TPE |
Colour | Black, Red |
