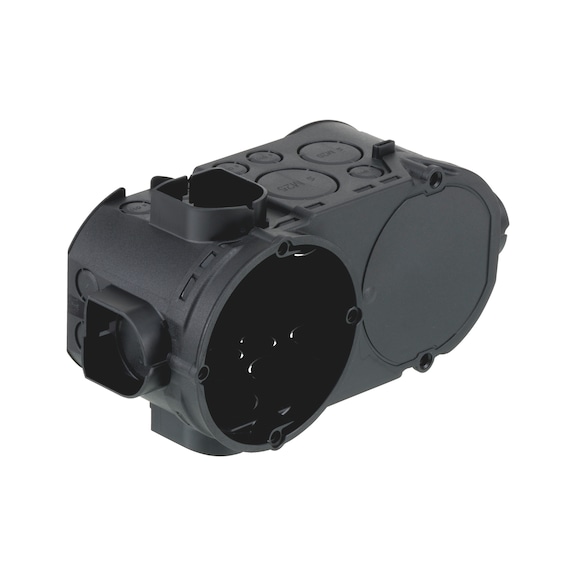

ELMO^® flush-mounted electronic box

Name: ELMO ® flush-mounted electronic box
Brand: Würth
SKU: 0975010426

Flush-mounted dual-chamber electronics box ELMO
APPSKT-FMO-ELECTRONIC-WO.SCR-H63MM/D60MM

Art.-no. 0975010426

EAN 4099618217401

All versions

Similar products

Individual price display after login

ELMO^® flush-mounted electronic box

Art.-no. 0975010426

Individual price display after login

Quantity

x 10 pcs

Exclusively for trade customers

Login/Register
Call customer service:

2-in-1 system: Can be installed using foam and plaster

Time savings thanks to non-interchangeable attachment bush

Variable attachment bush for pipes up to EN25

Four screw domes

Duplex network cable entries 2x ≤ 11 mm

Labelled cable and pipe entries

Dimensions in accordance with DIN 49073

Made in Germany

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For flush-mounted applications, such as the installation of electronic components (e.g. EIB actuators, communication and network technology, radio control elements, alarm modules) and cable reserves in an additional concealed installation space.

For screw mounting.

Design	Without device screws
Height	63 mm
Length x width	148 x 78 mm
Installation diameter (Ø)	60 mm
Number/type of cables/pipe entries	9 EN 25, 2 EN 20, 16 lines <= 11 mm
Flame-retardant	650°C
IP protection class	IP 20
Material	PS - Polystyrene
Halogen-free	Yes
