ENVI Water frame
Recycling system VS ENVI Water
RECYCLSYS-ENVI-WATER-RACK-LAVA-200MM
Art.-no. 0683721103
EAN 4068362183775
Individual price display after login
Exclusively for trade customers
Register now and access more than 125,000 products

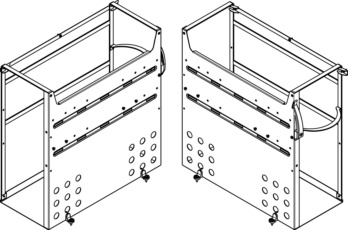

Width 200 mm, compatible with the CUBE/Quooker Pro 3 boiling water tank. For installation in the sink cabinet in conjunction with the ENVI Space waste separating system.
Optimal use of space in the sink cabinet due to the clever design
- Flexible positioning of the boiling water tank to the right or left of the waste separating system
- Integrated hose and cable management
- Special insert for optimal attachment of refuse bags
- Separate filter holder for installation on the back panel of the cabinet
- Suitable for two cabinet widths
- 600 mm and 800 mm
- Installation heights
- ENVI SPACE waste separating system: 362 mm or 462 mm
- Quooker system: 488 mm
- Installation depths
- ENVI SPACE waste separating system: 464 mm
- Quooker system: 500 mm
Dimensions subject to change. Subject to technical changes!
Product information
Datasheets(X)
 | |
Installation height | 505 mm |
Installation depth | 500 mm |
Material | Steel |
Surface | Powder-coated |
Colour | Lava grey |
Length | 483 mm |
Width | 200 mm |
Height | 488 mm |
