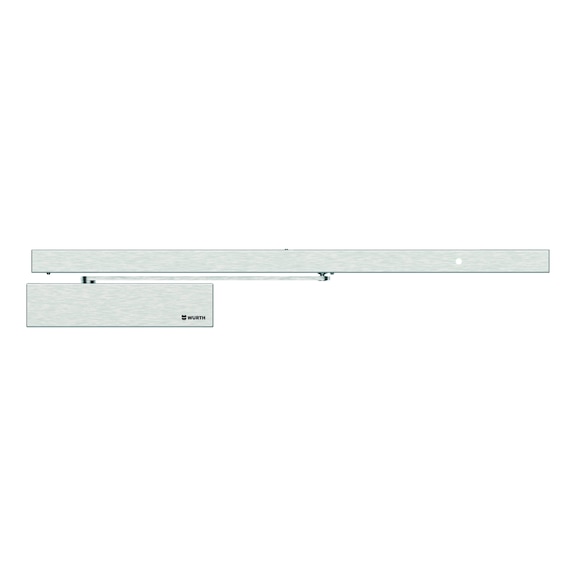

Electromagnetic hold-open device, single-leaf With GTS 630 and integrated smoke detector

EFR system with GTS 630 + integrated RSZ
HOLDOPNDEV-EFR-GTS630-DIN/L-(A2-DESIGN)

Art.-no. 0688003604
EAN 4061975572431
All versions

Prices for customers after login
Electromagnetic hold-open device, single-leaf With GTS 630 and integrated smoke detector

Art.-no. 0688003604

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Holds a door of up to 1100 mm open securely and meets accessibility requirements in accordance with Spec 18040 and DIN SPEC 1104

The system complies with the latest testing principles


  • Magnet switch-off time in the event of an alarm min. 3 sec.

  • Overpressure capacity of system/door, can be set to below 80 N (for use without manual switch)

  • Circuit monitoring of ceiling detectors and manual switches


All electronic components in the sliding rail are fully pre-mounted, wired and the assemblies checked ex works


  • This enables faster assembly without errors

  • Smoke detector with contamination display and automatic calibration for preventing false alarms


Quick mounting of the sliding rail using only two screws


  • Same drilling pattern as with sliding rails for the door closer


Easy routing of the connecting cable through cable duct integrated into the sliding rail

Notice

The operator of the systems is required to commission the system after initial installation, to test it monthly for the first 12 months, and afterwards, if there are no functional defects, to test it every 3 months and perform a service once a year. Akademie Würth offers suitable seminars in this respect.



Delivery time approx. 10 working days.

Application area
Classification key in line with DIN EN 1154: 1996 + A1:2002
3/481 - 4113

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

A hold-open device is an electrical device that is used to keep fire doors open. The door leaf can be locked in the open position until the device is either tripped manually or automatically via the smoke detector in the event of a fire or power failure, then the door closes. For single-leaf fire doors, smoke protection, and panic doors made of metal or wood.

Area of application

Hold-open device, Object area, Private area

Suitable for

Fire protection doors, Smoke protection doors, Panic doors

Suitable for number of doors

1

Fire protection certified

Yes

Suitable for barrier-free construction according to DIN 18040

Yes

Colour

Stainless steel, matt

Colour slide rail

Stainless steel, matt

Gloss level

Matt

Suitable for min./max. door width

850-1100 mm

DIN direction

DIN L

Mounting option

Hinge side: standard mounting, With assembly base plate

Opening angle

170 Degree

Min./max. door closer size

1-4

Material

Aluminium / stainless steel / plastic / steel

Surface

Lacquered

Surface of the body

Lacquered

Surface of the rail

Lacquered

Surface of the face plate

0 - not applicable

Suitable for min./max. door thickness

40-120 mm

Locking range

80° - 130°

Closing speed

Infinitely adjustable by valve 170° - 0 ° hinge side normal assembly

Closing delay

0 - not applicable

Latching speed

Infinitely adjustable by valve 10° - 0 °

Back-check action

Constant from 70 °

Min./max. temperature conditions

-15 to 40 °C

Nominal voltage

230 V/AC

Standards

EN 1154:1996 + A1:2002, EN 1155:1997 + A1:2002, EN 16034, EN 16035, DIN 18040-1, DIN 18040-2

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Construction product

Yes

Included in delivery

1 x door closer, 1 x mounting base plate, 1 x sliding rail with electromagnetic locking device and integrated smoke detector system, 1 x sliding rail arm, 1 x fastening material and installation instructions

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Inspection kit
Inspection kit

INSP-SET-(F.HOLDOPN-DEV)

Required for the acceptance and maintenance of Würth hold-open devices
x 1 pcs
The packaging unit defines the number of articles in one packaging. In the catalog segment you can choose from different packaging units if a pop-up menu is displayed.

Just leave the field empty if you don't know the packaging unit when directly entering the article number in the shopping basket or when importing with Easy-/VarioScan. The packaging unit will be determined automatically.
The article number is made up of the following: VVVVAAABBB
VVVV = 4 digits for prefix number (please note that the first digit is currently always 0)
