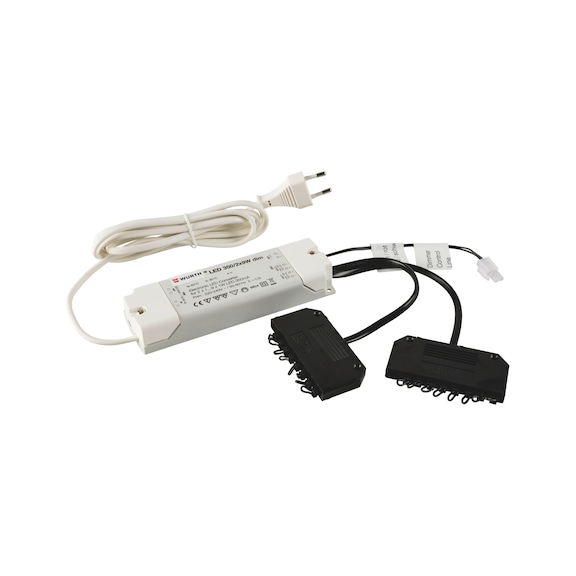

Electronic safety transformer - TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM

Electronic safety transformer - TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM - 1

Electronic safety transformer - TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM - 2

Electronic safety transformer - TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM - 3

Electronic safety transformer - TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM - 4

Electronic safety transformer

Name: Electronic safety transformer
Brand: Würth
SKU: 0976500536

Electronic safety transformer dimmable
TRAFO-SP-LED-2X9LINE-LD1-2X9W-350MA-DIM

Art.-no. 0976500536

EAN 4050382473943

All versions

Similar products

Prices for customers after login

Electronic safety transformer

Art.-no. 0976500536

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Dimmable, 1–10 V

Built-in protection against:

Secondary line short-circuit

Overload

Idling

After eliminating interference (e.g. short-circuit) the unit starts up again automatically

Technical data:

Nominal input voltage: 220–240 V, 50–60 Hz

350 MA constant/max. 35 Volt DC

Dimming range: 10–100%

Dimmer control line 1–10 V with plug system DIM1

Low voltage — 350 mA/LED

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For LED lights with plug system


Min. frequency	50 Hz
Max. frequency	60 Hz
Output voltage	35 V/DC
Min. output power	1 W
Cable length (secondary)	100 mm
Number of connections	18 PCS
Dimmable	Yes
Material of housing	Plastic
Colour of housing	White
Length	156 mm
Width	50 mm
Height	23 mm
IP protection class	IP 20

Additional accessory:

Product

Description

Quantity

Price
/PU

Extension cable For LED lights with LED A (12 V) and LD1 (350 mA) plug systems

EXTLNE-(F.PLGINSYS-LED-A/LD1)-L1M

Art.-no. 0976500505

x 1 pcs

Extension cable For LED lights with LED A (12 V) and LD1 (350 mA) plug systems

EXTLNE-(F.PLGINSYS-LED-A/LD1)-L2M

Art.-no. 0976500506

x 1 pcs

Surface-mounted dimmer 1-10 V

SWTCH-EL-DIMMER-MOUNT-DIMMER-(1-10V)

Art.-no. 0976500656

x 1 pcs

Distributor coupling

DISTR-F.SWTCH-EL-DIM-2LINE

Art.-no. 0976500658

For 1-10 V dimming control, plug-in. For connecting several transformers to 1-10 V dimming control.

x 1 pcs

Distributor coupling

DISTR-F.SWTCH-EL-DIM-6LINE

Art.-no. 0976500659

For 1-10 V dimming control, plug-in. For connecting several transformers to 1-10 V dimming control.

x 1 pcs

Extension cable

EXTLNE-(F.SWTCH-EL)-DIM-DIM1-1800MM

Art.-no. 0976500665

For 1-10 V dimming control, plug-in. For extending the connection line with 1-10 V dimming control.

x 1 pcs
