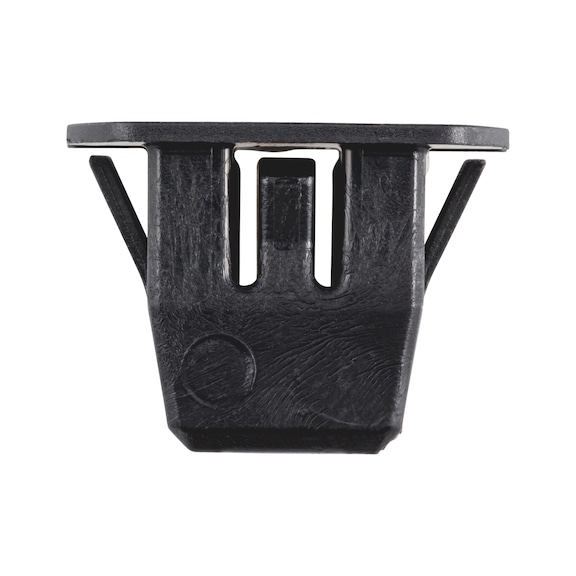

Expanding nut rounded from below
Expanding nut with rounded anchor
EXPNDNUT-9-11MM
Art.-no. 0500300035
EAN 4099618042478
Register now and access more than 125,000 products
Datasheets(X)
 | |
Suitable for screw | Diameter 4.8 mm |
Min./max. drill hole diameter | 9.00-11.00 mm |
Min./max. attachment thickness | 0.70-1.00 mm |
Width of head (D) | 11.00 mm |
Length of head (E) | 17.50 mm |
Length below head (C) | 12.50 mm |
Overall height (B) | 13.00 mm |
Colour | Black |
Material | POM - Polyoxymethylene |
Suitable for vehicle manufacturer | Volkswagen, Audi |
Corresponds to original spare part number | 8K0837199, BM5117K657CA |
Installation location | Universal |
