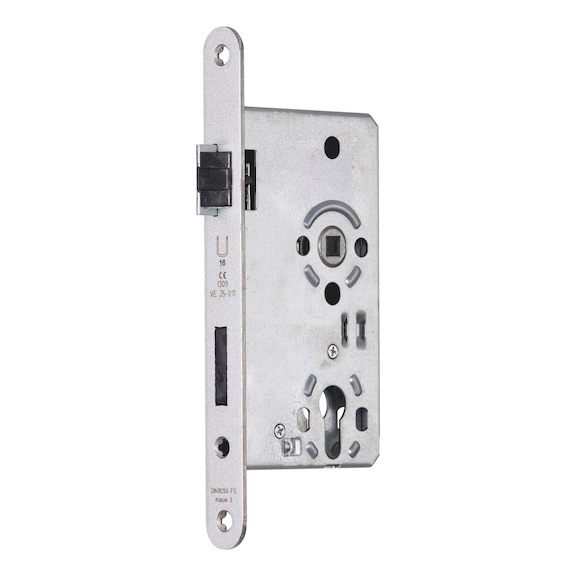

FH 19 mortise lock - MORTLOK--FP19-CK-DIN/L-SILVER-SOFT-65-24 FH 19 mortise lock - MORTLOK--FP19-CK-DIN/L-SILVER-SOFT-65-24
FH 19 mortise lock - MORTLOK--FP19-CK-DIN/L-SILVER-SOFT-65-24 - 1
FH 19 mortise lock - MORTLOK--FP19-CK-DIN/L-SILVER-SOFT-65-24 - 2

FH 19 mortise lock

Mortise lock FH 19
MORTLOK--FP19-CK-DIN/L-SILVER-SOFT-65-24

Art.-no. 0688506139

EAN 4052713290120

All versions

Individual price display after login
FH 19 mortise lock

Art.-no. 0688506139

Individual price display after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Mortise lock for class 3 fire doors
  • Increased stability due to the lock case support in the handle area, which allows for a higher torque when screwing the rosettes and prevents the handle from sticking or breaking the door cover

  • Noise-damped latch and bolt due to an embedded plastic coating that dampens the impact on the strike plate

  • Quiet closing of the door for increased comfort
Notice

Profile cylinders in accordance with EN 1303 may only be used in FH 19 locks if they have been tested for use on fire doors and smoke protection doors.



Does not include strike plate.

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For fire doors in living areas and public areas.

Fire protection certified

Yes

Door lock class

3

With replacement

Yes

Face plate width

24 mm

Backset

65 mm

Distance (from handle to lock)

72 mm

DIN direction

DIN L

Material of face plate

Steel

Material of bar

Steel / polyamide

Material of catch bolt

Steel/polyamide

Door-lock hub

9 mm

Split nut

No

Latch lock bolt throw

Double-turn 20mm

Colour of face plate

Silver metallic

Surface of the face plate

Lacquered

Surface of the catch bolt

Zinc plated

Surface of the latch

Zinc plated

Standards

EN 12209

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Classification key in line with DIN EN 12209: 2003
3 M 5 1 0 G 3 H C 2 0
