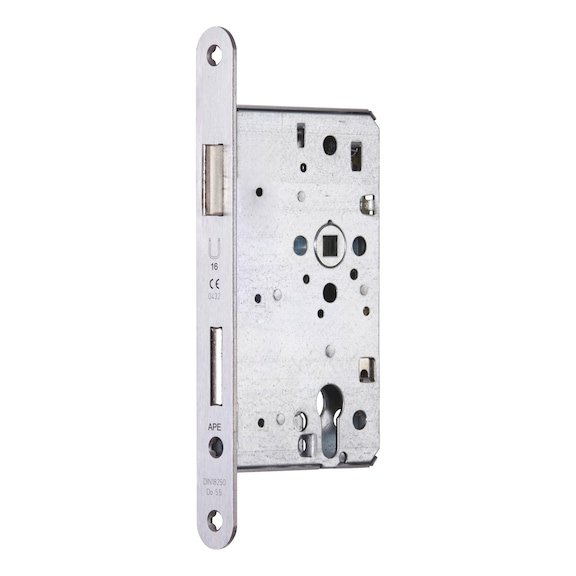

FH 20 panic mortise lock Class 3 with panic function D or E

Art.-no. 0688506340

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Panic function D, handle on both sides and split nut


For doors that need to allow passage from inside and outside. After emergency opening from inside, the door can also be used from outside, e.g. to allow easy access for emergency services. Emergency exit door only



Panic function E, knob/handle set


For doors that need to allow passage from inside. After emergency opening from inside, the door cannot be used from outside.

Notice

Profile cylinders in accordance with EN 1303 may only be used in FH 20 locks if they have been tested for use on fire doors and smoke protection doors.


Thumbturn, free-wheeling and electric cylinders must not be used on panic locks (D, E).


Keys must not be left in the profile cylinder on panic locks.


A device must have been tested in conjunction with the relevant door fitting in order to be deemed compliant with DIN EN 179: 2008.


Does not include locking plate.

Dimensions subject to change. Subject to technical changes.
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For fire doors and emergency exit doors in living areas and public areas.

Fire protection certified

Yes

Door lock class

3

Panic function

E outward

With replacement

Yes

Face plate width

24 mm

Backset

65 mm

Distance (from handle to lock)

72 mm

DIN direction

DIN R

Material of face plate

Stainless steel

Door-lock hub

9 mm

Split nut

No

Latch lock bolt throw

Double-turn 20mm

Surface of the face plate

0 - not applicable

Gloss level of face plate

Matt

Surface of the catch bolt

Nickel plated

Surface of the latch

Nickel plated

Standards

EN 12209, EN 179

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Classification key in line with DIN EN 12209: 2003
3 S 5 1 0 C 3 B A 2 0
Classification key in line with DIN EN 179: 2008
3 7 6 B 1 3 2 2 A B
