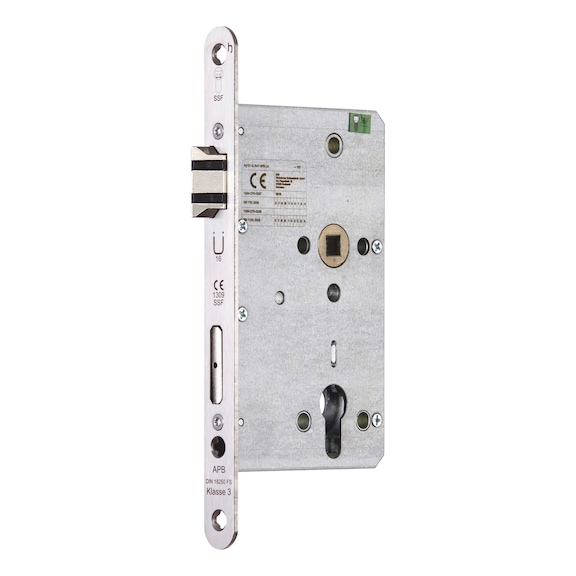

FH 61 panic mortise lock
Mortise lock FH 61
MORTLOK-FP61-APB-CK-DIN/LA-A2-SOFT-65-20
Register now and access more than 125,000 products
- The locks can be used on emergency exit doors in accordance with EN 179 and panic bolts in accordance with DIN EN 1125, with horizontal operating bars, on the emergency escape route
- The split nut has a spring on both sides. This keeps the handles horizontal on both sides of the door
- The bolt is locked once the key is turned approx. 100°
Profile cylinders in accordance with EN 1303 may only be used in FH 61 locks if they have been tested for use on fire doors and smoke protection doors.
Thumbturn, free-wheeling and electric cylinders may be used on panic locks (B, D).
A device must have been tested in conjunction with the relevant door fitting in order to be deemed compliant with DIN EN 179: 2008 and DIN EN 1125:2008.
Does not include locking plate, delivery time approx. 16 working days.
Dimensions subject to change. Subject to technical changes.
Datasheets(X)
For fire doors, panic doors and emergency exit doors in living areas and public areas.
 | |
Fire protection certified | Yes |
Door lock class | 3 |
Panic function | B outward |
With replacement | No |
Face plate width | 20 mm |
Backset | 65 mm |
Distance (from handle to lock) | 72 mm |
DIN direction | DIN L |
Material of face plate | Stainless steel |
Door-lock hub | 9 mm |
Split nut | Yes |
Latch lock bolt throw | Single turn 21 mm |
Gloss level of face plate | Matt |
Surface of the catch bolt | Nickel plated |
Surface of the latch | Nickel plated |
Standards | EN 1125:2008, EN 12209, EN 179 |
EC declaration of conformity (CE) | Yes |
Environmental Product Declaration | Yes |
| Classification key in line with DIN EN 12209: 2003 | ||||||||||
| 3 | S | 5 | 1 | 0 | G | 2 | B | A | 2 | 0 |
| Classification key in line with DIN EN 1125: 2008 | |||||||||
| 3 | 7 | 6 | B | 1 | 4 | 2 | 2 | A | 2 |
| Classification key in line with DIN EN 179: 2008 | |||||||||
| 3 | 7 | 6 | B | 1 | 4 | 4 | 1 | A | A/D |
