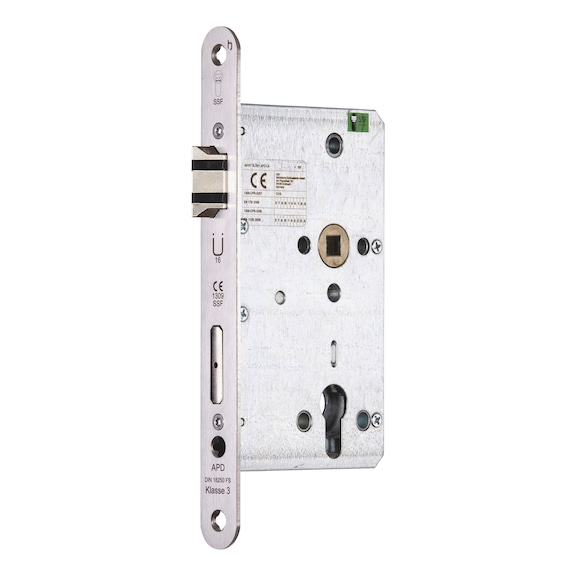

FH 61 panic mortise lock

Mortise lock FH 61
MORTLOK-FP61-APD-CK-DIN/LA-A2-SOFT-65-24

Art.-no. 0688506570
EAN 4052713290281

Prices for customers after login
FH 61 panic mortise lock

Art.-no. 0688506570

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Mortise lock with panic function B or D and whisper lock
  • The locks can be used on emergency exit doors in accordance with EN 179 and panic bolts in accordance with DIN EN 1125, with horizontal operating bars, on the emergency escape route

  • The split nut has a spring on both sides. This keeps the handles horizontal on both sides of the door

  • The bolt is locked once the key is turned approx. 100°
Notice

Profile cylinders in accordance with EN 1303 may only be used in FH 61 locks if they have been tested for use on fire doors and smoke protection doors.


Thumbturn, free-wheeling and electric cylinders may be used on panic locks (B, D).


A device must have been tested in conjunction with the relevant door fitting in order to be deemed compliant with DIN EN 179: 2008 and DIN EN 1125:2008.


Does not include locking plate, delivery time approx. 16 working days.

Dimensions subject to change. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For fire doors, panic doors and emergency exit doors in living areas and public areas.

Fire protection certified

Yes

Door lock class

3

Panic function

D outward

With replacement

No

Face plate width

24 mm

Backset

65 mm

Distance (from handle to lock)

72 mm

DIN direction

DIN L

Material of face plate

Stainless steel

Door-lock hub

9 mm

Split nut

Yes

Latch lock bolt throw

Single turn 21 mm

Gloss level of face plate

Matt

Surface of the catch bolt

Nickel plated

Surface of the latch

Nickel plated

Standards

EN 1125:2008, EN 12209, EN 179

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Classification key in line with DIN EN 12209: 2003
3S510G2BA20
Classification key in line with DIN EN 179: 2008
376B1441AA/D
Classification key in line with DIN EN 1125: 2008
376B1422A2
Additional accessory:

Product
Description
Quantity
PU
Price
/PU
A 507 FS door handle

DH-A2-A507/FS-PANIC-SP-CK-MATT

Fire protection tested, meets the valid requirements for fire protection and escape doors
x 1 pcs
A 510 FS door handle

DH-A2-A510/FS-PANIC-SP-CK-MATT

Fire protection tested, meets the valid requirements for fire protection and escape doors
x 1 pcs
A 602 FS door handle

DH-A2-A602/FS-PANIC-ROS-CK-MATT

Fire protection tested, meets the valid requirements for fire protection and escape doors
x 1 pcs
