Flap swivel fitting For retractable flaps - PIVHNGE-SLIDINGS-FLAPS-562MM

Flap swivel fitting For retractable flaps - PIVHNGE-SLIDINGS-FLAPS-562MM - 1

Flap swivel fitting For retractable flaps - PIVHNGE-SLIDINGS-FLAPS-562MM - 2

Flap swivel fitting For retractable flaps

Name: Flap swivel fitting For retractable flaps
Brand: Würth
SKU: 0683400401

Flap pivot fitting for sliding flaps
PIVHNGE-SLIDINGS-FLAPS-562MM

Art.-no. 0683400401

EAN 4062856559329

All versions

Prices for customers after login

Flap swivel fitting For retractable flaps

Art.-no. 0683400401

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

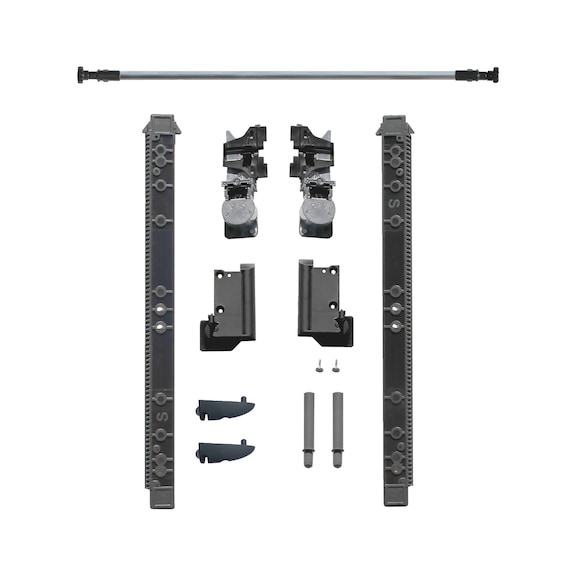

The inner flap is easy to install and disappears almost entirely into the cabinet when opening

High-quality screw-on flap fitting, no recessing into cabinet necessary, front with two cup holes

No obstruction due to open flap (max. projection 53 mm)

Excellent running characteristics thanks to synchronous rod

Pre-assembled synchronous rod that can be shortened as required

A damping system ensures smooth and even closing

Notice

The flap must be guided by hand throughout the opening and closing process.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Minimum installation depth	365 mm
Min. clear width of cabinet	562 mm
Height adjustment	+/- 2 mm
Lateral adjustment	+/- 2 mm
Material	0 - not applicable
Surface	0 - not applicable
Colour	Black
Load capacity	20 kg
Product weight (per item)	380.000 g

EB	Legend: EB = clear installation width F = joint ET = clear installation depth LH = clear cabinet height
562 mm
762 mm
962 mm
1162 mm
Synchronous rod cut = EB – 80 mm

Required accessory:

Product

Description

Quantity

Price
/PU

Segment bow handle

HNDL-SEGMBOW-A2-10X128MM

Art.-no. 0685237472
