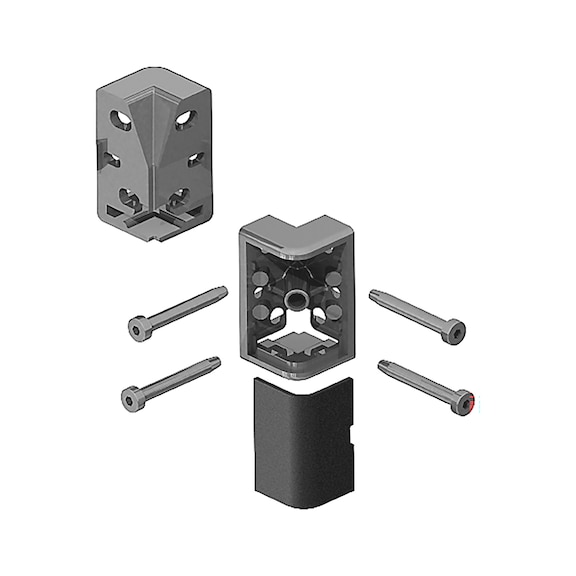

Frame corner connector set
Frame crn. die-cast alu set
CORNERCONNECTOR-ALU-SET-GREY-20X40MM
Art.-no. 4952600313
EAN 4056807474076
Register now and access more than 125,000 products
- For connecting frame profiles at a right angle
- Easy installation thanks to optimal hole spacing, which allows precise alignment
Datasheets(X)
 | |
Material | Aluminium die-cast |
Profile type | I |
Suitable for flute width (N) | 8 mm |

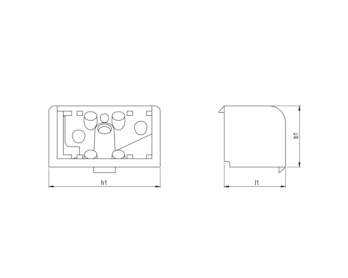

Length (l1) | 22 mm |
Width (b1) | 22 mm |
Height (h1) | 40 mm |
Number of pieces in assortment/set | 6 PCS |
RoHS-compliant | Yes |
