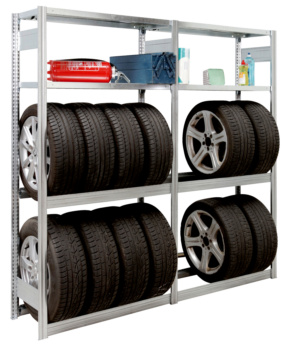

Garage boltless rack made of sheet steel

Name: Garage boltless rack made of sheet steel
Brand: Würth
SKU: 0957582401

Garage shelf
GARGSHLF-PLUGABLE-2000X1005X400MM

Art.-no. 0957582401

EAN 4056807693231

All versions

Specification

Robust boltless rack for storing automotive supplies such as tyres and car accessories

Functional design

Sophisticated design with two tyre levels and two storage levels

Practical add-on bays and accessories available for custom expansion

The pre-assembled frame is easy to put together without the need for additional tools

High load-bearing capacity

Frame with T-profile made from zinc-plated sheet steel makes it extremely stable and durable

With robust depth bars and support bars for stability

Storage levels with high load capacity

Notice

All indicated section widths are axis diameters

External dimensions: Width of basic rack + 56 mm, width of add-on rack + 0 mm, rack depth = base depth + 26 mm

Supplied empty

Application area

If the rack height is more than four times the rack depth, the rack must be secured against tipping.

Application

Application area

Space-saving storage of summer and winter tyres as well as car accessories, tools and small parts in a garage or workshop.

Technical information

Width	1005 mm
Depth	400 mm
Height	2000 mm
Shelf load	250 kg
Type description	Basic shelving unit
Number of levels	4 PCS
Height grid of the shelf level	25 mm
Bay load	2000 kg
Material of carrier section	Steel plate
Surface of the carrier section	Zinc plated

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)
