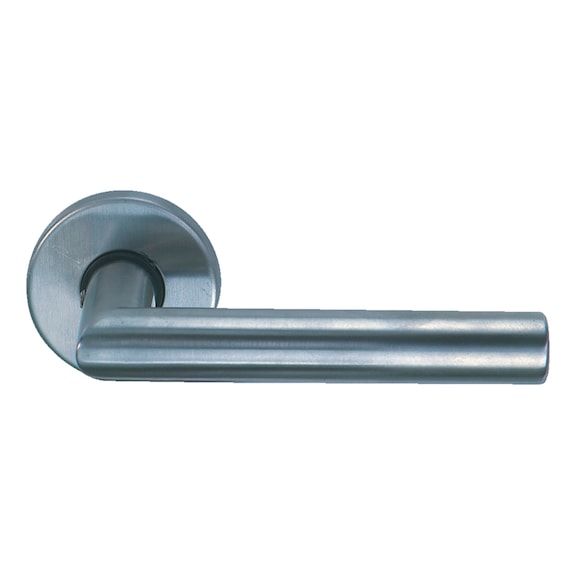

Ge-shaped handle hole For house doors - SDF-A2-DH-GE-L/R-MATT Ge-shaped handle hole For house doors - SDF-A2-DH-GE-L/R-MATT
Ge-shaped handle hole For house doors - SDF-A2-DH-GE-L/R-MATT - 1
Ge-shaped handle hole For house doors - SDF-A2-DH-GE-L/R-MATT - 2

Ge-shaped handle hole For house doors

Handle hole for house doors, Ge-shape
SDF-A2-DH-GE-L/R-MATT

Art.-no. 0687250502
EAN 4024835436045
All versions

Prices for customers after login
Ge-shaped handle hole For house doors

Art.-no. 0687250502

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

The door handles are securely mounted on a metal base rosette with cam


This connection is specially designed for doors subject to high load

Notice

Hook spindle must be ordered separately



Door handles can also be supplied with anti-bacterial surface by special order.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Type description

A 505

Shape of door handle

GE (Frankfurt type)

Fire protection certified

No

Suitable for

House doors

Material

Stainless steel A2, 1.4301

Gloss level

Matt

Square size

8 mm

DIN direction

DIN R/L

Environmental Product Declaration

Yes

Bearing Technology

Door handle, fixed
With plastic bearing

Insertion depth

62 mm

Handle length

130 mm

Handle diameter

21 mm

Door handle mount diameter

17.8 mm

Rosette diameter (inner)

55 mm

Rosette thickness (inner)

8 mm

Cam diameter

8 mm

Hole distance

38 mm

Material of basic rosette

Metal

Included in delivery

1 x handle pre-mounted on rosette, 2 x countersunk head screws with hexagon socket M5 x 35 mm, 1 x hexagon socket wrench with ball head SW 3 3

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Mounting plate for one-sided handle attachment
Mounting plate for one-sided handle attachment

AY-MNTPLT-HNDLHO-ONE-SIDED

x 1 pcs
Hook spindle
Hook spindle

AY-HOOKPIN-HNDLHO-ST-(ZN)-8/10X80MM

Suitable for doors drilled on one side
x 1 pcs
