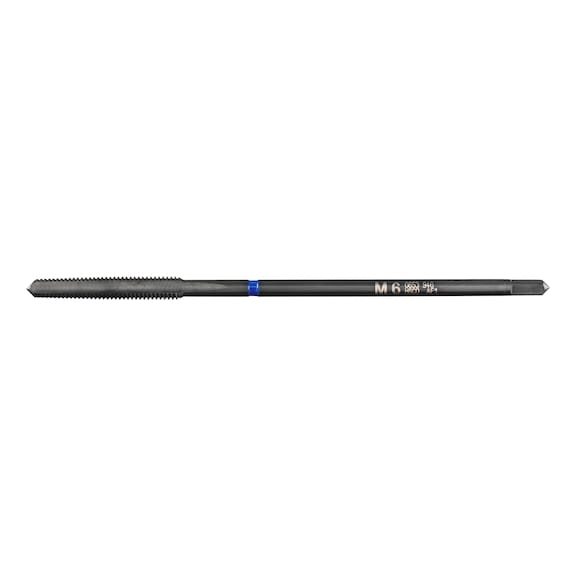

HSCo machine tap for through holes in nuts DIN 357 - MATAP-THRGHO-HSCO-DIN357-BLUE-M6

HSCo machine tap for through holes in nuts DIN 357

Name: HSCo machine tap for through holes in nuts DIN 357
Brand: Würth
SKU: 0653946

Machine screw tap HSCo blue DIN 357 form B
MATAP-THRGHO-HSCO-DIN357-BLUE-M6
ZEBRA

Art.-no. 0653946

EAN 4011231541855

All versions

Similar products

Prices for customers after login

HSCo machine tap for through holes in nuts DIN 357

Art.-no. 0653946

Prices for customers after login

Quantity

Exclusively for trade customers

Login/Register
Call customer service:

Long machine nut screw tap with overrun shaft for cutting nuts for metric threads in steel up to a strength of 800 N/mm².

Long service life

Very long threaded start (approx. 2/3 of the thread length) and up to 4x more teeth compared to conventional machine taps

Specially developed for machining nuts

The groove and thread geometry has been specially designed for machining nuts.

Product packaging made of 100 % PCR (recycled plastic from household waste), 100 % recyclable and Cradle to Cradle Certified^® Bronze

Notice

Sufficient coolant and lubricant must be added when cutting threads.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Instructions

Before reversing the screw tap, the entire point of the tool must be removed from the drill hole. Failure to do so may cause cutting edges to chip or the tool to break.

Thread type	Metric thread
Material to be processed	Steel
Hole type	Clearance hole ≤ 1xD
Suitable for machine type	Milling/drill center Pedestal drilling machine
Quality	ZEBRA-Premium
Thread type x nominal diameter	M6
Pitch	1 mm
Length	110 mm
Shank diameter	4.5 mm
Size of square	3.4 mm
DIN	357
Cutting material	HSCo
Surface	Plain
Core hole diameter	5 mm
Shank style	Cylindrical with square drive
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	800 N/mm²
Service life (points system)	3 of 4 points
Trueness to gauge (points system)	4 of 4 points
Versatility (points system)	1 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	3 of 4 points
Material of sub-group	General structural steels Non-alloyed tempering steels Tool steels High-speed steels Copper, low-alloyed Aluminium alloys Aluminium Aluminium casting alloys (<10% silicon) Aluminium wrought alloys

Cutting values
For M3-M5
Material designation	Tensile strength			M3			M4			M5
		v_c		n		f	n		f	n		f
		from	to	from	to		from	to		from	to
Steels
General structural steels	< 800 N/mm²	6	8	637	849	0,50	477	637	0,70	382	509	0,80
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	637	849	0,50	477	637	0,70	382	509	0,80
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	637	849	0,50	477	637	0,70	382	509	0,80
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	637	849	0,50	477	637	0,70	382	509	0,80
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	637	849	0,50	477	637	0,70	382	509	0,80
Alloyed quenched and tempered steels	< 800 N/mm²	4	6	424	637	0,50	318	477	0,70	255	382	0,80
Nitriding steels	< 800 N/mm²	4	6	424	637	0,50	318	477	0,70	255	382	0,80
Tool steels	< 800 N/mm²	4	6	424	637	0,50	318	477	0,70	255	382	0,80
High-speed steels	< 800 N/mm²	4	6	424	637	0,50	318	477	0,70	255	382	0,80

Cutting values
For M6-M10
Material designation	Tensile strength			M6			M8			M10
		v_c		n		f	n		f	n		f
		from	to	from	to		from	to		from	to
Steels
General structural steels	< 800 N/mm²	6	8	318	424	1,00	239	318	1,25	191	255	1,50
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	318	424	1,00	239	318	1,25	191	255	1,50
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	318	424	1,00	239	318	1,25	191	255	1,50
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	318	424	1,00	239	318	1,25	191	255	1,50
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	318	424	1,00	239	318	1,25	191	255	1,50
Alloyed quenched and tempered steels	< 800 N/mm²	4	6	212	318	1,00	159	239	1,25	127	191	1,50
Nitriding steels	< 800 N/mm²	4	6	212	318	1,00	159	239	1,25	127	191	1,50
Tool steels	< 800 N/mm²	4	6	212	318	1,00	159	239	1,25	127	191	1,50
High-speed steels	< 800 N/mm²	4	6	212	318	1,00	159	239	1,25	127	191	1,50

Cutting values
For M12
Material designation	Tensile strength			M12
		v_c		n		f
		from	to	from	to
Steels
General structural steels	< 800 N/mm²	6	8	159	212	1,75
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	159	212	1,75
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	159	212	1,75
Unalloyed quenched and tempered steels	< 800 N/mm²	6	8	159	212	1,75
Low-alloy quenched and tempered steels	< 800 N/mm²	6	8	159	212	1,75
Alloyed quenched and tempered steels	< 800 N/mm²	4	6	106	159	1,75
Nitriding steels	< 800 N/mm²	4	6	106	159	1,75
Tool steels	< 800 N/mm²	4	6	106	159	1,75
High-speed steels	< 800 N/mm²	4	6	106	159	1,75

Key
v_c = cutting speed [m/min]
f = feed [mm/r]
n = rotation speed [rpm]
The suggested cutting values are reference values and must be adapted to the respective conditions.
