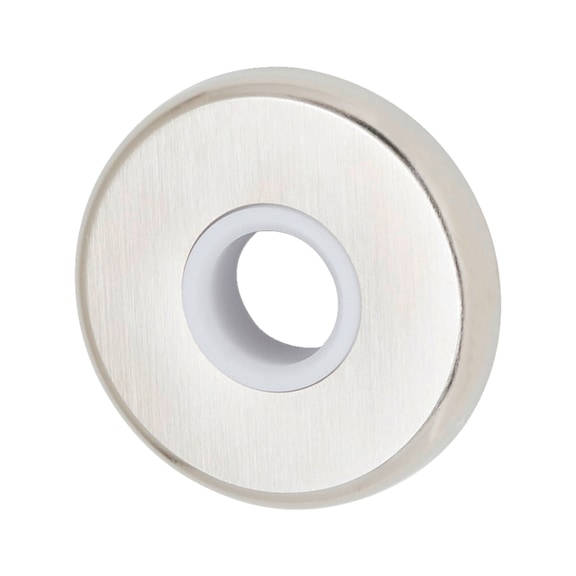

Handle escutcheon pair Rounded

Name: Handle escutcheon pair Rounded
Brand: Würth
SKU: 0687170110

Handle rosette pair, rounded
DH-ZD-DHROS-ROUND-(NI)-MATT

Art.-no. 0687170110

EAN 4011231594875

All versions

Specification

Simple assembly and best-possible hold

Base escutcheon mounted separately for easier access and using exclusively chipboard screws

Dimensions subject to change. Subject to technical changes!

Technical information


Suitable for	Interior doors, Toilet and bathroom doors, Apartment entrance doors
Fire protection certified	No
Bearing Technology	With plastic bearing
Material of handle/ cover rosette or shield	Die-cast zinc
Gloss level	Matt
Surface	Nickel plated
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Door handle mount diameter	15.8 mm
Rosette/ shield shape	Rosette round
Rosette diameter	52 mm
Rosette thickness	6.5 mm
Cam diameter	7 mm
Hole distance	38 mm

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Required accessory:

Product

Description

Quantity

Price
/PU

ZD 2 door handle pair

DH-ZD2-(NI)-MATT

Art.-no. 0687170002

Can be used for a variety of long plates made of die-cast zinc

ZD 3 door handle pair

DH-ZD3-(NI)-MATT

Art.-no. 0687170003

Can be used for a variety of long plates made of die-cast zinc

ZD 4 door handle pair

DH-ZD4-(SLEEVE-BLACK)-(NI)-MATT

Art.-no. 0687170004

Can be used for a variety of long plates made of die-cast zinc

ZD 5 door handle pair

DH-ZD5-(NI)-MATT

Art.-no. 0687170008

Can be used for a variety of long plates made of die-cast zinc

ZD 9 door handle pair

DH-ZD9-(NI)-(CR)

Art.-no. 0687170009

Can be used for a variety of escutcheons and long plates made of die-cast zinc

ZD 7 door handle pair

DH-ZD7-(NI)-MATT

Art.-no. 0687170022

Can be used for a variety of escutcheons and long plates made of die-cast zinc
