Hazardous goods cabinet
Hazardous materials cabinet typ 90 classic XS
SAFETY-CABINET-T90-CLASSIC-ONE-XS
Art.-no.
1981000003
EAN 4065746659789
Prices for customers after login
Exclusively for trade customers
Register now and access more than 125,000 products

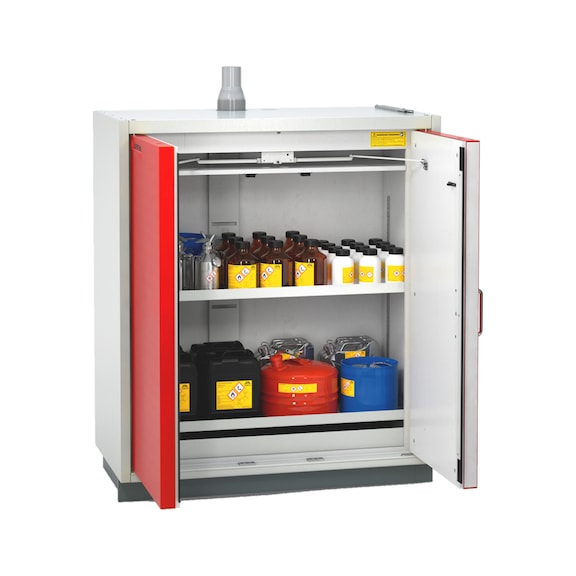

Type 90, Classic One, XS
Safety cabinet with hinged doors. For storing flammable liquids. Prototype test by MPA/TÜV SÜD in accordance with DIN EN 14470-1, laboratory furniture standard DIN EN 14727, EK5/AK4 09-10:2009 and TRGS 510 Appendix 3.
Test seal: GS, CE mark and High-Quality seal from TÜV SÜD
- External dimensions: 1194 x 612 x 1425 mm (W x D x H)
- Internal dimensions: 1099 x 446 x 1175 mm (W x D x H)
Equipment:
- Hinged doors with thermal monitoring with single-handed operation for automatic closure in case of fire, doors remain open in every position.
- Cylinder lock for secure access.
- Floor collecting tray powder-coated in RAL 7035
- 2x bearing base powder-coated in RAL 7035
- Air vent NW 75 and earth connection on the cabinet roof, earth connection is conductively connected to the cabinet body.
- Internal equipment is conductively connected to the cabinet body.
- Visual check of the ventilation shut-off valve.
- Adjustable feet for levelling
- Base reset, 85 mm high
Product information
Datasheets(X)
Width x height x depth | 1194 x 1385 x 612 mm |
Material | Sheet steel |
Surface | Powder-coated |
Fire resistance rating | T90 |
Load capacity of shelf | 75 kg |
