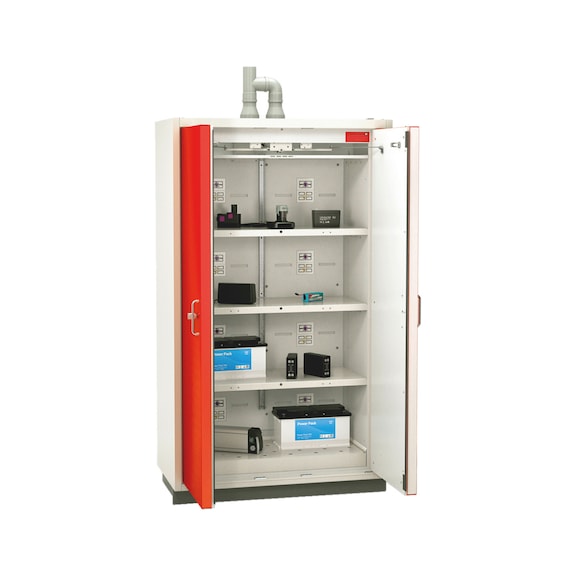

Hazardous materials cabinet Type 90 XL Standard for rechargeable batteries

Conventional door mechanism (door handle)

Type approval testing by MPA/TÜV SÜD in accordance with DIN EN 14470-1, DIN EN 16121, DIN EN 16122 and DIN 31000, risk management in accordance with VdS 3103, test seal: Safety-tested and CE-labelled

No charging function

Design and colour scheme:

• Sheet steel outer body, RAL 7035


• Sheet steel door, RAL 3020


• Inner body with decorative panels, RAL 7035


• Door closes automatically in the event of fire


• Door remains open in any position


• Cylinder lock with permanent locking


• Backdraft lock after internal fire


• Sheet steel floor collection tray, RAL 7035


• Four sheet steel storage levels, RAL 7035


• One storage area per storage level


• Exhaust air connection on the cabinet top


• Visual inspection of the ventilation opening


• Earth connection on the cabinet top


• Internal equipment conductively connected to the cabinet body


• Adjustable feet for levelling


• Recessed base, RAL 7015
