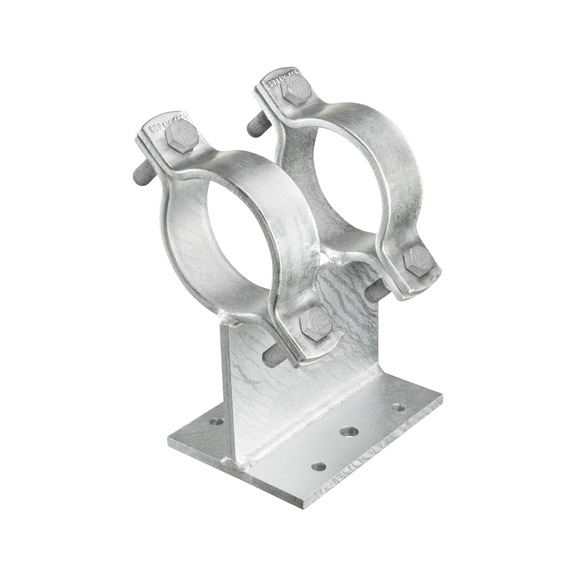

Heating pipe rack, type 2
SLIDBEAR-(HDG)-ED273,0-TYPE2-PG3-45DG
Art.-no. 5256200273
EAN 4068362442056
Register now and access more than 125,000 products
- Pipe rack with two welded pipe clamps
- T-beam in accordance with DIN EN 10055
- Hot-dip galvanised screws and nuts, FK 8.8
Load specifications for standard dimensions at +100°C taking as basis customary screw tightening torques. Note potentially reduced load on clamped connection! All pipe bearings are also available upon request with pipe clamp rotated 45°.
Datasheets(X)
 | |
DN nominal width | DN 250 |
Outer diameter of pipe (ØD) | 273.0 mm |
Permissible tensile force when pulled straight | 6.8 kN |
Permissible transverse tensile force | 2.0 kN |
Length (L) | 200 mm |
Carrier width (B) | 150 mm |
Clamp width (BS) | 60 |
Tube axis dimension (H) | 297.2 mm |
Bottom of pipe (H1) | 168.7 mm |
Product weight (per item) | 13200.000 g |
Mounting bore diameter (Ø RL1) | 18 mm |
Surface | Hot dip galvanized |
Mounting bore diameter 2 (Ø RL2) | 18 mm |

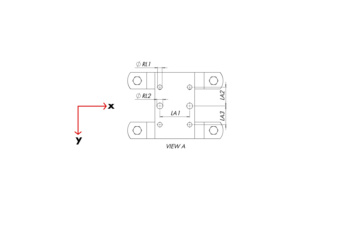

Hole distance 1 (LA1) | 90 mm |
Material | Steel |
Hole distance 2 (LA2) | 58.5 mm |
Hole distance 3 (LA3) | 58.5 mm |
Plate thickness (tp) | 10,7 mm |
Material thickness (tR) | 8 mm |
Backing material thickness (tS) | 7.1 mm |
