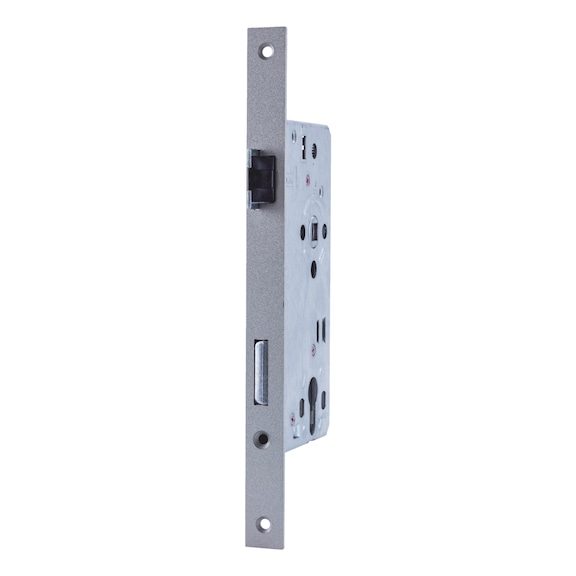

House door mortise lock HT 28

Mortise lock, house door HT 28
MORTSLOK-HT28-CK-DIN/L-SILV-92-65-22-AS

Art.-no. 0688505159
EAN 4056807942810
Prices for customers after login
House door mortise lock HT 28

Art.-no. 0688505159

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Soft-close lock
  • Zinc-plated, closed lock housing with fitting openings

  • A plastic coating embedded in the latch reduces the noise of the latch striking the locking plate
Notice

Does not include striker plate.

Classification key in line with DIN EN 12209: 2003
2S500B2BC20

Dimensions subject to change. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For residential sector rebated wooden house doors.

Door lock class

3

Face plate shape

Edged

Design

Whisper lock

Face plate width

22 mm

DIN direction

DIN L

Backset

65 mm

Distance (from handle to lock)

92 mm

Door-lock hub

10 mm

With replacement

Yes

Material of face plate

Steel

Colour of face plate

Silver metallic

Material of catch bolt

Steel/polyamide

Surface of the catch bolt

Zinc plated

Material of bar

Steel

Surface of the latch

Zinc plated

Suitable for

Wooden house doors

Lock type

Profile cylinder

Surface of the face plate

Lacquered

DIN

18251-1

EN standard

12209

Material of door-lock hub bearing

Steel

Material

Steel

Face plate length

280 mm

Face plate thickness

3 mm

Lock-case width

94.5 mm

Lock case height

184 mm

Lock-case thickness

15 mm

Standards

EN 12209, DIN 18251-1

Environmental Product Declaration

Yes
