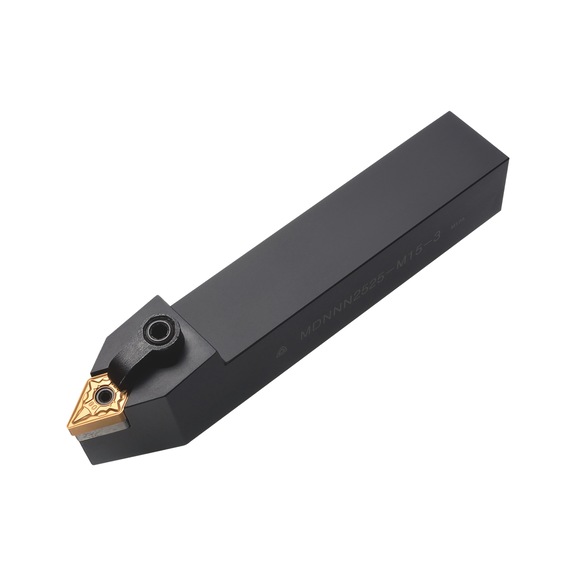

ISO insert holder with M clamping system for DN indexable inserts

Name: ISO insert holder with M clamping system for DN indexable inserts
Brand: Würth
SKU: 5445061503

CLMPHOLD-MDNNN2525-M15-3

Art.-no. 5445061503

EAN 4065746348911

All versions

Similar products

Individual price display after login

ISO insert holder with M clamping system for DN indexable inserts

Art.-no. 5445061503

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For external machining with DN indexable inserts

Secure holder with claw clamping system (ISO M)

Multi-point clamping for extremely precise machining, even under difficult machining conditions

Claw and spring pin clamping for excellent stability

Steel turning tool holder, coated surface for maximum durability

Notice

Supplied empty!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

MDJN for longitudinal turning and copying

MDNN for longitudinal turning and copying

MDQN for longitudinal turning, facing and copying


ISO-Code Clamp holder external machining	MDNNN2525-M15
Suitable for indexable inserts	DN.. 1504..
Grip system	M
Shaft height (H)	25 mm
Shank width (W)	25 mm
Length (L)	150 mm
Programming size (S)	12.5 mm
Knife edge height (h)	25 mm
Length of head (l)	41 mm
Setting angle	62.5 Degree
Tool design	Neutral
DIN	4983
Cutting edge length ISO	15

Additional accessory:

Product

Description

Quantity

Price
/PU

Clamp for ISO M clamping system

AY-CLAMP-ISO-M-CLMPSYS-CDH8N

Art.-no. 5445095103

For mounting indexable insert

x 2 pcs

Clamping screw for ISO M clamping system

AY-SCREW-ISO-M-CLMPSYS-DHA5/16-32

Art.-no. 5445095204

For mounting indexable insert and clamp

x 5 pcs

Pipe pin for ISO M clamping system

AY-SHIMPIN-ISO-M-CLMPSYS-SP4D

Art.-no. 5445095302

For mounting intermediate layer

x 5 pcs

Intermediate layer for ISO M clamping system

AY-SHIM-ISO-M-CLMPSYS-SD43D

Art.-no. 5445095503

For adjusting indexable insert

x 10 pcs

L-shaped hex key Inch sizes, short version

ALLENKEY-HEXSKT-3/32INX58MM

Art.-no. 071531127

ZEBRA^® professional-quality tools in a range of sizes

L-shaped hex key Inch sizes, short version

ALLENKEY-HEXSKT-5/32INX74MM

Art.-no. 071531131

ZEBRA^® professional-quality tools in a range of sizes
