Name: ISO insert holder with M clamping system for VN indexable inserts
Brand: Würth
SKU: 5445071505

Insert holder ISO M clamp holder VN
CLMPHOLD-MVQNL2020-K16

Art.-no. 5445071505

EAN 4065746347792

All versions

Similar products

Prices for customers after login

ISO insert holder with M clamping system for VN indexable inserts

Art.-no. 5445071505

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

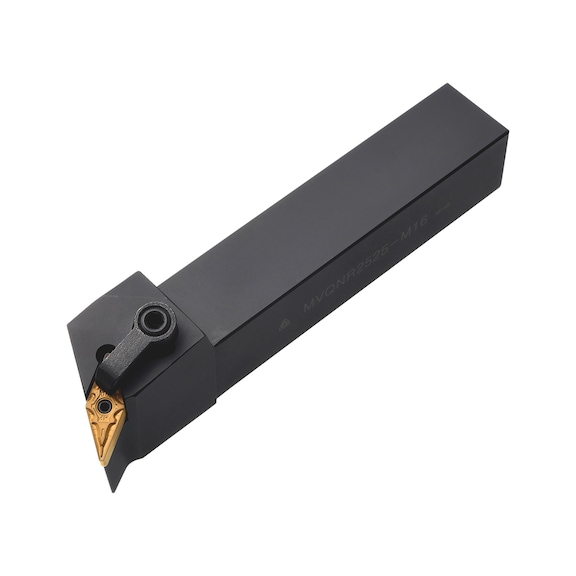

For external machining with VN indexable inserts

Secure holder with claw clamping system (ISO M)

Excellent precision in machining thanks to multiple clamping, even in difficult machining conditions

Excellent stability due to claw and spring pin clamping

Steel turning tool holder, enhanced surface for maximum durability

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

MVJN for longitudinal turning and copying

MVQN for longitudinal turning and copying

MVVN for longitudinal turning and copying


ISO-Code Clamp holder external machining	MVQNL2020-K16
Suitable for indexable inserts	VN.. 1604..
Grip system	M
Shaft height (H)	20 mm
Shank width (W)	20 mm
Length (L)	125 mm
Programming size (S)	25 mm
Knife edge height (h)	20 mm
Length of head (l)	42 mm
Setting angle	117.5 Degree
Tool design	Left
DIN	4983
Cutting edge length ISO	16

Additional accessory:

Product

Description

Quantity

Price
/PU

Clamp for ISO M clamping system

AY-CLAMP-ISO-M-CLMPSYS-CDH8N2

Art.-no. 5445095104

For mounting indexable insert

x 2 pcs

Clamping screw for ISO M clamping system

AY-SCREW-ISO-M-CLMPSYS-DHA5/16-32

Art.-no. 5445095204

For mounting indexable insert and clamp

x 5 pcs

Pipe pin for ISO M clamping system

AY-SHIMPIN-ISO-M-CLMPSYS-SP3D

Art.-no. 5445095301

For mounting intermediate layer

x 5 pcs

Intermediate layer for ISO M clamping system

AY-SHIM-ISO-M-CLMPSYS-SV32D

Art.-no. 5445095505

For adjusting indexable insert

x 10 pcs

Allen key

ALLENKEY-HEXSKT-5/64INX48MM

ZEBRA

Art.-no. 071531126

Hexagon socket inch sizes, short version

Allen key

ALLENKEY-HEXSKT-5/32INX65MM

ZEBRA

Art.-no. 071531131

Hexagon socket inch sizes, short version
