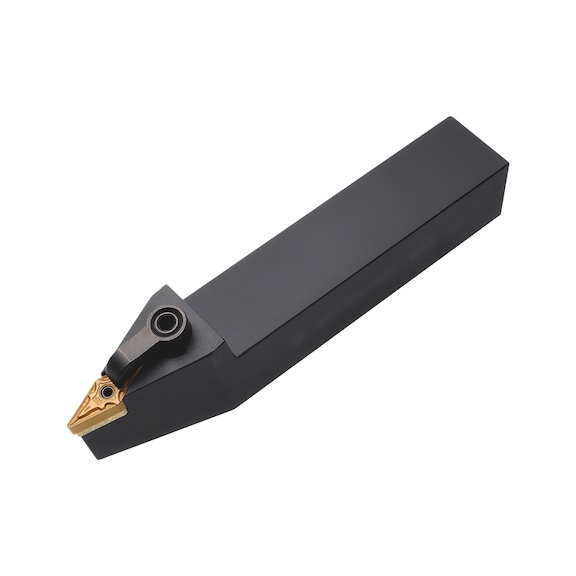

ISO insert holder with M clamping system for VN indexable inserts

Art.-no. 5445071510

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

For external machining with VN indexable inserts

Secure holder with claw clamping system (ISO M)


  • Excellent precision in machining thanks to multiple clamping, even in difficult machining conditions

  • Excellent stability due to claw and spring pin clamping


Steel turning tool holder, enhanced surface for maximum durability

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area
  • MVJN for longitudinal turning and copying

  • MVQN for longitudinal turning and copying

  • MVVN for longitudinal turning and copying

ISO-Code Clamp holder external machining

MVVNN2525-M16

Suitable for indexable inserts

VN.. 1604..

Grip system

M

Shaft height (H)

25 mm

Shank width (W)

25 mm

Length (L)

150 mm

Programming size (S)

32 mm

Knife edge height (h)

25 mm

Length of head (l)

42 mm

Setting angle

72.5 Degree

Tool design

Neutral

DIN

4983

Cutting edge length ISO

16

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Allen key
Allen key

ALLENKEY-HEXSKT-5/64INX48MM

ZEBRA
Hexagon socket inch sizes, short version
Allen key
Allen key

ALLENKEY-HEXSKT-5/32INX65MM

ZEBRA
Hexagon socket inch sizes, short version
Clamp for ISO M clamping system
Clamp for ISO M clamping system

AY-CLAMP-ISO-M-CLMPSYS-CDH8N2

For mounting indexable insert
x 2 pcs
Clamping screw for ISO M clamping system
Clamping screw for ISO M clamping system

AY-SCREW-ISO-M-CLMPSYS-DHA5/16-32

For mounting indexable insert and clamp
x 5 pcs
Pipe pin for ISO M clamping system
Pipe pin for ISO M clamping system

AY-SHIMPIN-ISO-M-CLMPSYS-SP3D

For mounting intermediate layer
x 5 pcs
Intermediate layer for ISO M clamping system
Intermediate layer for ISO M clamping system

AY-SHIM-ISO-M-CLMPSYS-SV32D

For adjusting indexable insert
x 10 pcs
