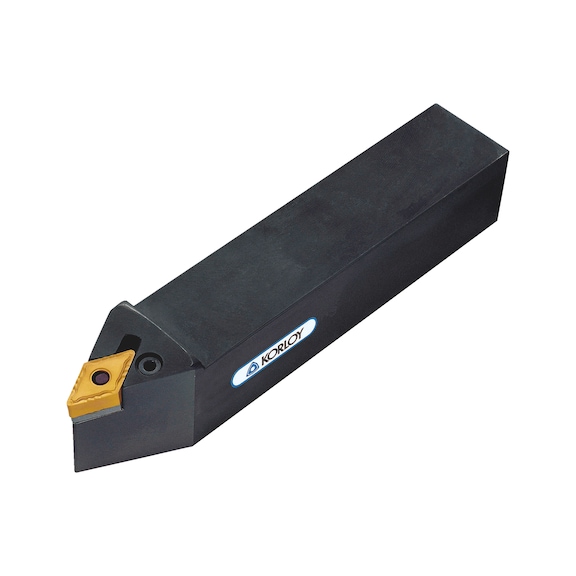

ISO insert holder with P clamping system for DN indexable inserts

Art.-no. 5445061221

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For external machining with DN indexable inserts

Simple clamping with toggle lever clamping system (ISO P)

Optimal design for ideal chip removal

Quick changing of indexable insert

Steel turning tool holder, enhanced surface for maximum durability

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

PDJN for longitudinal turning and copying

PDNN for longitudinal turning and copying


ISO-Code Clamp holder external machining	PDNNN3232-S15
Suitable for indexable inserts	DN.. 1506..
Grip system	P
Shaft height (H)	32 mm
Shank width (W)	32 mm
Length (L)	250 mm
Programming size (S)	16 mm
Knife edge height (h)	32 mm
Length of head (l)	37 mm
Setting angle	62.5 Degree
Tool design	Neutral
DIN	4983
Cutting edge length ISO	15

Additional accessory:

Product

Description

Quantity

Price
/PU

Spring pin for ISO P clamping system

AY-SHIMPIN-ISO-P-CLMPSYS-SP4

Art.-no. 5445092202

For mounting intermediate layer

x 5 pcs

Spring pin mandrel for ISO P clamping system

AY-SHIMPIN-PUNCH-ISO-P-CLMPSYS-LSPS4

Art.-no. 5445092302

For fixing the spring pin

x 5 pcs

Screw for ISO P clamping system

AY-SCREW-ISO-P-CLMPSYS-VHX0821

Art.-no. 5445092502

For securing the toggle lever

x 5 pcs

Allen key, hexagon socket short version

ALLENKEY-HEXSKT-SHORT-3X66

Art.-no. 071531 38

Toggle lever for ISO P clamping system

AY-LEVER-ISO-P-CLMPSYS-LV4B

Art.-no. 5445092113

For mounting indexable insert

x 5 pcs

Intermediate layer for ISO P clamping system

AY-SHIM-ISO-P-CLMPSYS-SD42

Art.-no. 5445092608

For adjusting indexable insert

x 10 pcs
