ISO insert holder with P clamping system for RC indexable inserts - CLMPHOLD-PRGCL3225-P16

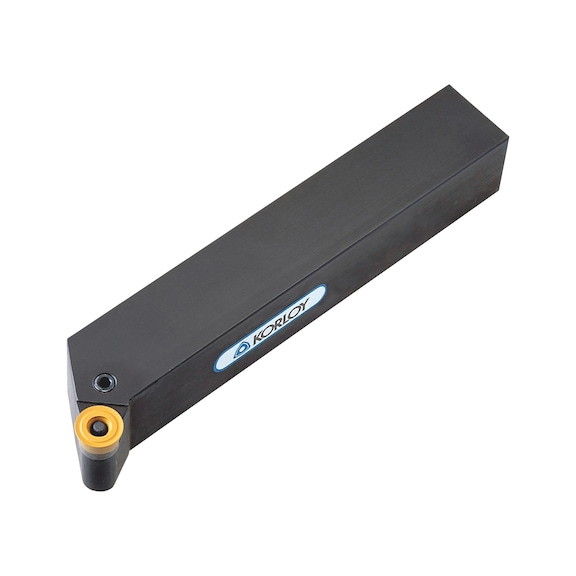

ISO insert holder with P clamping system for RC indexable inserts - CLMPHOLD-PRGCL3225-P16 - 1

ISO insert holder with P clamping system for RC indexable inserts

Name: ISO insert holder with P clamping system for RC indexable inserts
Brand: Würth
SKU: 5445012214

Insert holder ISO P clamping system RC
CLMPHOLD-PRGCL3225-P16

Art.-no. 5445012214

EAN 4065746349345

All versions

Similar products

Prices for customers after login

ISO insert holder with P clamping system for RC indexable inserts

Art.-no. 5445012214

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For external machining with RC indexable inserts

Simple clamping with toggle lever clamping system (ISO P)

Optimal design for ideal chip removal

Quick changing of indexable insert

Steel turning tool holder, enhanced surface for maximum durability

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

PRDC for longitudinal turning and copying

PRGC for longitudinal turning and copying


ISO-Code Clamp holder external machining	PRGCL3225-P16
Suitable for indexable inserts	RCMX1606M0
Grip system	P
Shaft height (H)	32 mm
Shank width (W)	25 mm
Length (L)	170 mm
Programming size (S)	32 mm
Knife edge height (h)	32 mm
Length of head (l)	32 mm
Setting angle	90 Degree
Tool design	Left
DIN	4983
Cutting edge length ISO	16

Additional accessory:

Product

Description

Quantity

Price
/PU

Spring pin for ISO P clamping system

AY-SHIMPIN-ISO-P-CLMPSYS-SP4

Art.-no. 5445092202

For mounting intermediate layer

x 5 pcs

Spring pin mandrel for ISO P clamping system

AY-SHIMPIN-PUNCH-ISO-P-CLMPSYS-LSPS4

Art.-no. 5445092302

For fixing the spring pin

x 5 pcs

Allen key, hexagon socket

ALLENKEY-HEXSKT-SHORT-2,5X58,5

ZEBRA

Art.-no. 071531 37

Short version

Toggle lever for ISO P clamping system

AY-LEVER-ISO-P-CLMPSYS-LR16

Art.-no. 5445092118

For mounting indexable insert

x 5 pcs

Screw for ISO P clamping system

AY-SCREW-ISO-P-CLMPSYS-VHX0621

Art.-no. 5445092512

For securing the toggle lever

x 5 pcs

Intermediate layer for ISO P clamping system

AY-SHIM-ISO-P-CLMPSYS-SR16

Art.-no. 5445092612

For adjusting indexable insert

x 10 pcs
