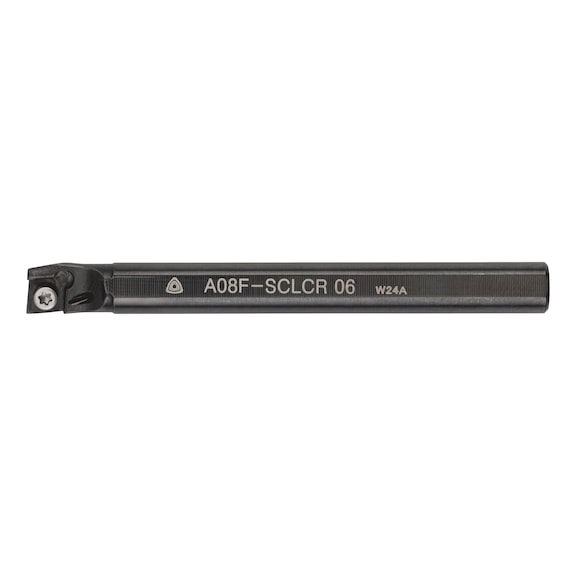

ISO insert holder with S clamping system for CC indexable inserts

Name: ISO insert holder with S clamping system for CC indexable inserts
Brand: Würth
SKU: 5445935302

Insert holder ISO S clamping system CC
CLMPHOLD-CC-STEELSHANK-IC-A08F-SCLCR-06

Art.-no. 5445935302

EAN 4065746356800

All versions

Prices for customers after login

ISO insert holder with S clamping system for CC indexable inserts

Art.-no. 5445935302

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Specification

For internal machining with CC indexable inserts

Practical holder with screw clamping system (ISO S)

Maximum chip space for optimal chip removal

Minimum number of different components

Available in the following shank types

Made of steel with internal cooling (ISO A) or without internal cooling (ISO S)

Made of carbide with internal cooling (ISO E) or without internal cooling (ISO C)

Notice

Steel: Recommended projection length up to 4xD

Carbide: Recommended projection length up to 6xD

Application

Application area

SCLC for longitudinal turning and facing

Technical information


ISO-Code Clamp holder internal machining	A08F-SCLCR-06
Suitable for indexable inserts	CC.. 0602..
Shank type	A
Coolant supply	Yes
Grip system	S
Min. bore diameter (∅D)	10 mm
Shank diameter (∅d)	8 mm
Clamping surface height (H)	7.5 mm
Length (L)	80 mm
Programming size (S)	5 mm
Length of head (l)	14 mm
Tool design	Right
Setting angle	95 Degree
DIN	4983
Number of clamping surfaces	1

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Additional accessory:

Product

Description

Quantity

Price
/PU

Allen key

ALLENKEY-TX7X51

ZEBRA

Art.-no. 071536 07

TX, short version

Screw for ISO S clamping system

AY-SCREW-ISO-S-CLMPSYS-FTKA02555

Art.-no. 5445093304

For mounting indexable insert

x 5 pcs
