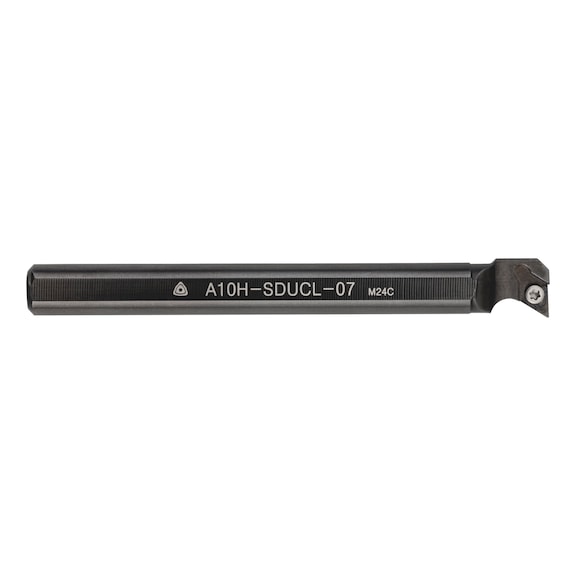

ISO insert holder with S clamping system for DC indexable inserts - CLMPHOLD-DC-STEELSHANK-IC-A10H-SDUCL-07

ISO insert holder with S clamping system for DC indexable inserts - CLMPHOLD-DC-STEELSHANK-IC-A10H-SDUCL-07 - 1

ISO insert holder with S clamping system for DC indexable inserts - CLMPHOLD-DC-STEELSHANK-IC-A10H-SDUCL-07 - 2

ISO insert holder with S clamping system for DC indexable inserts - CLMPHOLD-DC-STEELSHANK-IC-A10H-SDUCL-07 - 3

ISO insert holder with S clamping system for DC indexable inserts

Name: ISO insert holder with S clamping system for DC indexable inserts
Brand: Würth
SKU: 5445965303

Insert holder ISO S clamping system DC
CLMPHOLD-DC-STEELSHANK-IC-A10H-SDUCL-07

Art.-no. 5445965303

EAN 4065746351591

All versions

Prices for customers after login

ISO insert holder with S clamping system for DC indexable inserts

Art.-no. 5445965303

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For internal machining with DC indexable inserts

Practical holder with screw clamping system (ISO S)

Maximum chip space for optimal chip removal

Minimum number of different components

Available in the following shank types

Made of steel with internal cooling (ISO A) or without internal cooling (ISO S)

Made of carbide with internal cooling (ISO E) or without internal cooling (ISO C)

Notice

Steel: Recommended projection length up to 4xD

Carbide: Recommended projection length up to 6xD

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

SDQC for longitudinal turning and copying

SDUC for longitudinal turning and copying

SDZC for longitudinal turning and reverse turning


ISO-Code Clamp holder internal machining	A10H-SDUCL-07
Suitable for indexable inserts	DC.. 0702..
Grip system	S
Shank type	A
Coolant supply	Yes
Min. bore diameter (∅D)	13 mm
Shank diameter (∅d)	10 mm
Clamping surface height (H)	9.5 mm
Length (L)	100 mm
Programming size (S)	7 mm
Length of head (l)	20 mm
Tool design	Left
Setting angle	93 Degree
DIN	4983
Number of clamping surfaces	1

Additional accessory:

Product

Description

Quantity

Price
/PU

Screw for ISO S clamping system

AY-SCREW-ISO-S-CLMPSYS-FTKA02555

Art.-no. 5445093304

For mounting indexable insert

x 5 pcs

Allen key

ALLENKEY-TX7X51

ZEBRA

Art.-no. 071536 07

TX, short version
