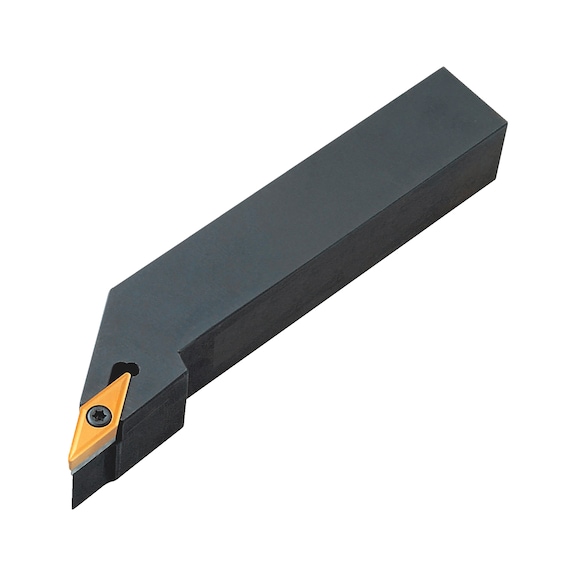

ISO insert holder with S clamping system for VB indexable inserts

Insert holder ISO S clamping system VB
CLMPHOLD-SVJBR1616-H11

Art.-no. 5445073318
EAN 4065746358736
Prices for customers after login
ISO insert holder with S clamping system for VB indexable inserts

Art.-no. 5445073318

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

For external machining with VB indexable inserts

Practical holder with screw clamping system (ISO S)


  • Maximum chip space for optimal chip removal

  • Minimum number of different components


Steel turning tool holder, enhanced surface for maximum durability

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area
  • SVAB for longitudinal turning and copying

  • SVHB for longitudinal turning and copying

  • SVJB for longitudinal turning and copying

  • SVVB for longitudinal turning and copying

ISO-Code Clamp holder external machining

SVJBR1616-H11

Suitable for indexable inserts

VB.. 1102..

Grip system

S

Shaft height (H)

16 mm

Shank width (W)

16 mm

Length (L)

100 mm

Programming size (S)

20 mm

Knife edge height (h)

16 mm

Length of head (l)

27 mm

Setting angle

93 Degree

Tool design

Right

DIN

4983

Cutting edge length ISO

11

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Allen key

ALLENKEY-TX7X51

ZEBRA
TX, short version
Screw for ISO S clamping system

AY-SCREW-ISO-S-CLMPSYS-FTKA02565

For mounting indexable insert
x 5 pcs
