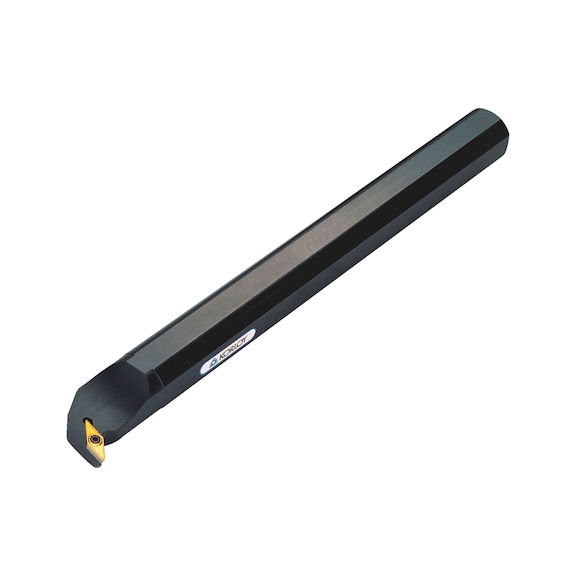

ISO insert holder with S clamping system for VB indexable inserts

Name: ISO insert holder with S clamping system for VB indexable inserts
Brand: Würth
SKU: 5445973303

CLMPHOLD-VB-STEELSHANK-IC-A32S-SVUBL-16

Art.-no. 5445973303

EAN 4065746355872

All versions

Individual price display after login

ISO insert holder with S clamping system for VB indexable inserts

Art.-no. 5445973303

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For internal machining with VB indexable inserts

Technical features

Practical holder with screw clamping system (ISO S)

Maximum chip space for optimal chip removal

Minimum number of different components

Recommended projection length up to 4xD

Shank types

Steel, with internal cooling (ISO A)

Steel, without internal cooling (ISO S)

Notice

Supplied empty!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

SVQB for longitudinal turning and copying

SVUB for longitudinal turning and copying


ISO-Code Clamp holder internal machining	A32S-SVUBL-16
Suitable for indexable inserts	VB.. 1604..
Grip system	S
Shank type	A
Coolant supply	Yes
Min. bore diameter (∅D)	40 mm
Shank diameter (∅d)	32 mm
Clamping surface height (H)	31 mm
Length (L)	250 mm
Programming size (S)	22 mm
Length of head (l)	49 mm
Tool design	Left
Setting angle	93 Degree
DIN	4983
Number of clamping surfaces	1

Additional accessory:

Product

Description

Quantity

Price
/PU

Screw for ISO S clamping system

AY-SCREW-ISO-S-CLMPSYS-FTGA03512

Art.-no. 5445093316

For mounting indexable insert

x 5 pcs

Intermediate layer for ISO S clamping system

AY-SHIM-ISO-S-CLMPSYS-SV32S

Art.-no. 5445093408

For adjusting indexable insert

x 10 pcs

Allen key, hexagon socket short version

ALLENKEY-HEXSKT-SHORT-3,5X69,5

Art.-no. 071531 57

L-shaped key TX, short version

ALLENKEY-TX15X58

Art.-no. 071536 15

Position screw for ISO S clamping system

AY-SHIMSCREW-ISO-S-CLMPSYS-SHXN0509F

Art.-no. 5445093101

For mounting intermediate layer

x 5 pcs
