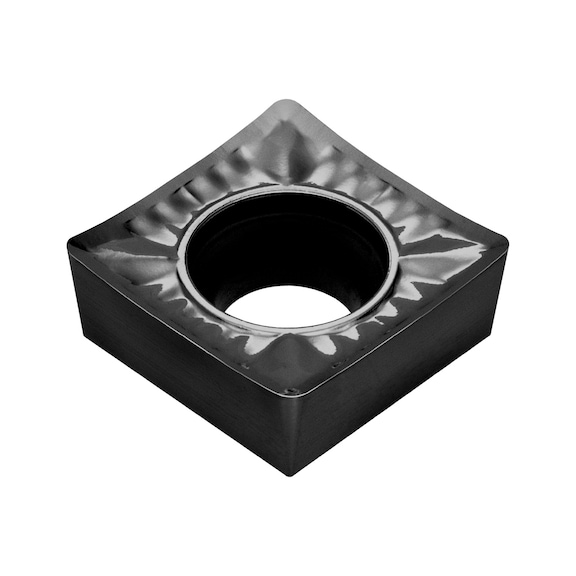

Indexable insert, carbide SCGT (medium machining)
ISO N medium machining SC
INDEXAINRT-SCGT09T304-AK-PD1000
Art.-no. 5445224308
EAN 4065233024830
Register now and access more than 125,000 products
- Highly positive rake
- Very long service life and excellent surface quality thanks to the three-dimensional surface
- Extremely sharp cutting edges
Datasheets(X)
For universal use in longitudinal and face turning
Material to be processed | Non-ferrous metal |
Supply type | Medium finishing |
Material | Carbide |
ISO-Code Rotating | SCGT 09T304 |
Chip breaker code | AK |
Carbide type ISO | N10 |
Carbide type | PD1000 |
Machining conditions for indexable insert | Good |
Shape of indexable insert ISO | S |
Clearance angle of indexable insert ISO | C |
Tolerance class of indexable insert ISO | G |
Indexable insert type ISO | T |
Size of indexable insert ISO | 09 |
Thickness of indexable insert ISO | T3 |
Corner radius of indexable insert ISO | 04 |
Coating | DLC |
Carbide type area ISO | N |
Materials group | N (primary application) |
min./max. ap | 0.1-5 mm |
f min./max. | 0.04-0.4 mm/r |
Min./max. Vc in non-ferrous metals | 570-1110 m/min |
