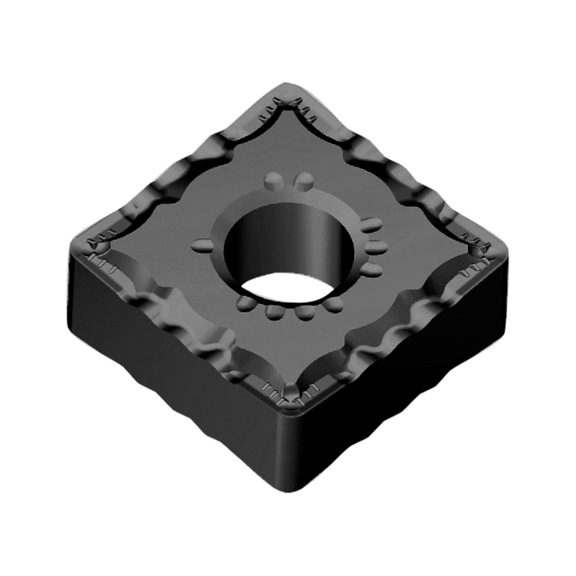

Indexable insert cermet SNMG (finishing)
ISO P finishing SN
INDEXAINRT-SNMG120404-VB-CC2500
Art.-no. 5445211201
EAN 4065233019867
Register now and access more than 125,000 products
- Excellent chip control
- High service life thanks to three-dimensional chip breakers
- Low cutting resistance and high stiffness of the cutting edge
Compared with carbide, cermet as a cutting material has a better wear resistance and a lower propensity for the development of built-up edges in tough materials. Its self-sharpening wear pattern keeps cutting forces low even after long cutting times. In finishing operations, this prolongs the service life and enables the greatest possible dimensional stability and glossy surfaces.
Datasheets(X)
For universal use in longitudinal and face turning
Material to be processed | Steel |
Supply type | Smoothing |
Material | Cermet |
ISO-Code Rotating | SNMG 120404 |
Chip breaker code | VB |
Carbide type ISO | P25 |
Carbide type | CC2500 |
Machining conditions for indexable insert | Good |
Shape of indexable insert ISO | S |
Clearance angle of indexable insert ISO | N |
Tolerance class of indexable insert ISO | M |
Indexable insert type ISO | G |
Size of indexable insert ISO | 12 |
Thickness of indexable insert ISO | 04 |
Corner radius of indexable insert ISO | 04 |
Coating | PVD |
Carbide type area ISO | P |
Materials group | P (primary application) |
min./max. ap | 0.3-2 mm |
f min./max. | 0.15-0.35 mm/r |
Min./max. Vc in steel | 180-350 m/min |
