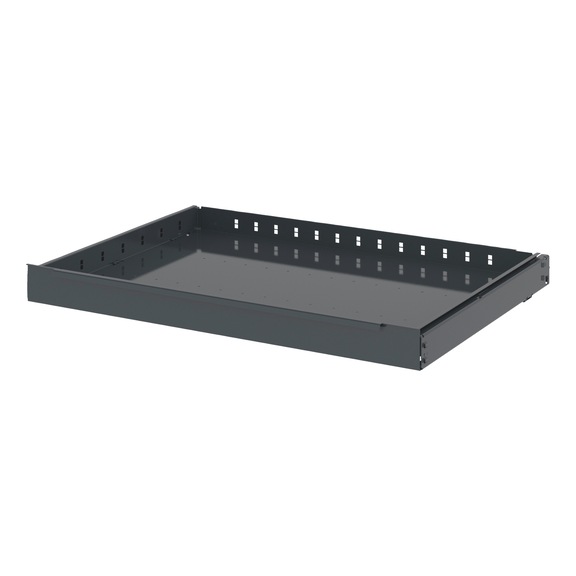

Inside drawer For system hinged door cabinet

System interior drawer
INDRWR-WNGDRCAB-16.8-H90-150KG-RAL7016

Art.-no. 5583135816
EAN 4065746487016

Prices for customers after login
Inside drawer For system hinged door cabinet

Art.-no. 5583135816

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Roller-mounted full-extension slides with a load capacity of 80 kg, in system dimension 16.8 also up to 150 kg load capacity
  • Tailor-made combinations and flexible, simple planning

  • The concealed drawers can be used in all housings with wing doors in the respective system dimensions due to uniform system dimensions

  • Internal dimensions in line with system dimensions to accommodate all foam and tray inserts as well as system boxes from ORSY® System World, compartment rails and compartment dividers, non-slip mats

  • The concealed drawers can be adjusted and retrofitted in the system with a grid size of 30 mm.

  • Drawer panel with chamfered handle strip, microstructure powder coating
Notice

Wing doors must be opened to an angle of 180°.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

System dimensions

16.8

Colour

Anthracite grey RAL 7016

Drawer front height

90 mm

Load capacity of drawer

150 kg

Width (internal dimension of drawer)

925 mm

Depth (internal dimension of drawer)

670 mm

Pullout type

Full extension

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Non-slip mats, cut to system dimensions

NONSLPMAT-DRWRCAB-16.8

For safe storage and protection of tools against slipping
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.8

DEVDRSORT-DRWR16.8-10FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With compartment rails and compartment dividers for system dimensions 16.8

DEVDRSORT-DRWR16.8-16FOLD-H60

Dividers made of zinc-plated sheet steel for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With system boxes for system dimensions 16.8

BOXSORT-DRWRCAB16.8-46FOLD-H60

System box made of plastic for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
Divider assortment With system boxes for system dimensions 16.8

BOXSORT-DRWRCAB16.8-24FOLD-H60

System box made of plastic for practical and flexible partitioning of the drawers, adapted to the respective drawer dimensions.
x 1 pcs
