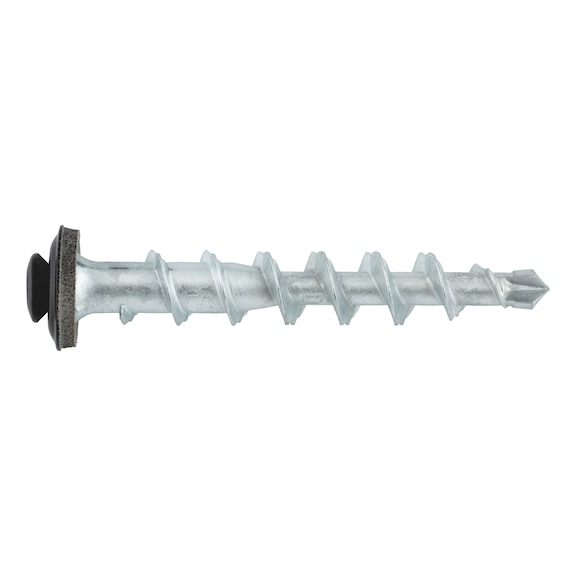

Insulation anchor W-ID SLIM

Insulation anchor W-ID SLIM
DWL-(W-ID SLIM)-ZD-A2-BLACK-8X62-D15

Art.-no. 5925138015
EAN 4062856276417
All versions

Prices for customers after login
Insulation anchor W-ID SLIM

Art.-no. 5925138015

Prices for customers after login
Quantity
PU
x 100 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

A clever, simple problem solver for fixing lightweight loads on external thermal insulation composite systems (ETICS)
  • The special thread geometry makes it extremely easy to screw into the insulation

  • For optimal processing, the mounting part must have a through hole of min. 8 mm and max. 12 mm

  • Thanks to the drill tip, the anchor penetrates effortlessly through the plaster and sealing layer

  • No tool changes required during installation

  • No need to pre-drill in masonry or ETICS

  • No penetration of masonry, so no thermal bridges are created

  • The anchor is used in push-through installation
Application area
Mounting of sealing strips
Mounting of wall connection panels

Create sheet metal

Screw in insulation anchor

Application area

For installation of sealing strips, wall connection panels, skirting boards, putty strips, stucco mouldings, stucco profiles, fixing strips, metal wall covers, cornice covers, ventilation covers, gravel borders, post boxes, light fittings, house numbers, advertising signs, company plaques, signposts and fly screens.



Suitable for use outdoors and in wet rooms - A2 stainless steel screw and washer

Anchor length (l)

62.7 mm

Head diameter (ds)

15 mm

Colour

Black

Hole diameter in component (d Bau)

8 mm

Embedding depth (h s)

57 mm

Material

Die-cast zinc

Material of screw

Stainless steel A2

Type description

W-ID SLIM

Shank diameter

6.23 mm

Thread length (dowel thread)

46.9 mm

Performance data

Distanza asse consigliata a ≥ [mm] 150
Distanza bordo consigliata ar [mm] 75
Profondità di inserimento hs [mm] 58
Spessore minimo di isolamento d ≥ [mm] 60
Hole dia. in component dbau [mm] 8 - 12
