Keyway cutters CNC with alternating helix angle

Name: Keyway cutters CNC with alternating helix angle
Brand: Würth
SKU: 5467211000

FINCTR-UP/DOWN-SC-Z2+2-L80MM-D10,0

Art.-no. 5467211000

EAN 4065746658454

All versions

Individual price display after login

Keyway cutters CNC with alternating helix angle

Art.-no. 5467211000

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Solid carbide high-performance cutter especially suitable for finishing, grooving, separating and joining in soft and light wood, compact and hard wood, wood panel materials and PVC materials in CNC machines.

Robust design

Basic cuts and suitable for drilling

Cross spiral angles create a smooth and burr-free surface

Right-hand and left-hand spirals provide an optimal finish and eliminate tear-out at both cutting edges

High cutting capacity

Product packaging made from 100 % PCR (recycled plastic from household waste) and 100 % recyclable

Notice

Usually used after roughing cutting. Cut addition approx. 1-2 mm.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Routing machines with or without CNC control

Machining centres

Special milling machines with milling spindles for mounting shank tools

Suitable for nesting applications

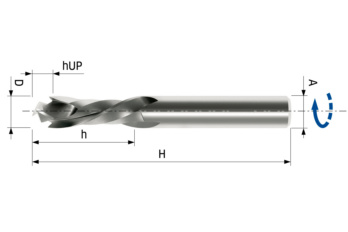

Diameter (D)	10 mm
Shank style	Cylindrical
Cutting material	SC
Length (H)	80 mm
Effective length (h)	29 mm
Number of teeth, cutter (Z)	2+2
Recommended rotation speed	18000 1/min
Shaft diameter x shaft length	10 x 30 mm
Max. rotation speed	30000 1/min
Spiral angle	30 Degree
Material to be processed	Softwood, Hardwood, Chipboard, Plywood, MDF, Veneered sheet material, Plastic-coated sheet material, Laminated panels
EN standard	847-2

Key
v_c = cutting speed [m/min]
a_p = cutting depth [mm]
n = rotation speed [rpm]
The suggested cutting values are reference values and must be adapted to the respective conditions.

Cutting values for dia. 10 mm
Material			Soft and light wood		Compact and hard wood		MDF		Chipboard
n	a_pmin.	a_pmax.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.
18000	1	10	12,0	14,0	10,8	12,6	13,2	15,4	13,2	15,4
20000	1	10	13,3	15,3	12,0	13,8	14,7	16,9	14,7	16,9
22000	1	10	14,7	16,7	13,2	15,0	16,1	18,3	16,1	18,3
24000	1	10	16,0	18,0	14,4	16,2	17,6	19,8	17,6	19,8
26000	1	10	17,3	19,3	15,6	17,4	19,1	21,3	19,1	21,3
28000	1	10	18,7	20,7	16,8	18,6	20,5	22,7	20,5	22,7
30000	1	10	20,0	22,0	18,0	19,8	22,0	24,2	22,0	24,2
18000	11	20	9,0	11,0	8,1	9,9	9,9	12,1	9,9	12,1
20000	11	20	10,0	12,0	9,0	10,8	11,0	13,2	11,0	13,2
22000	11	20	11,0	13,0	9,9	11,7	12,1	14,3	12,1	14,3
24000	11	20	12,0	14,0	10,8	12,6	13,2	15,4	13,2	15,4
26000	11	20	13,0	15,0	11,7	13,5	14,3	16,5	14,3	16,5
28000	11	20	14,0	16,0	12,6	14,4	15,4	17,6	15,4	17,6
30000	11	20	15,0	17,0	13,5	15,3	16,5	18,7	16,5	18,7
18000	21	27	6,0	8,0	5,4	7,2	6,6	8,8	6,6	8,8
20000	21	27	6,7	8,7	6,0	7,8	7,3	9,5	7,3	9,5
22000	21	27	7,3	9,3	6,6	8,4	8,1	10,3	8,1	10,3
24000	21	27	8,0	10,0	7,2	9,0	8,8	11,0	8,8	11,0
26000	21	27	8,7	10,7	7,8	9,6	9,5	11,7	9,5	11,7
28000	21	27	9,3	11,3	8,4	10,2	10,3	12,5	10,3	12,5
30000	21	27	10,0	12,0	9,0	10,8	11,0	13,2	11,0	13,2

Cutting values for dia. 20 mm
Material			Soft and light wood		Compact and hard wood		MDF		Chipboard
n	a_pmin.	a_pmax.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.
18000	1	20	18,0	20,0	16,2	18,0	19,8	22,0	19,8	22,0
20000	1	20	20,0	22,0	18,0	19,8	22,0	24,2	22,0	24,2
22000	1	20	22,0	24,0	19,8	21,6	24,2	26,4	24,2	26,4
24000	1	20	24,0	26,0	21,6	23,4	26,4	28,6	26,4	28,6
18000	21	40	13,5	15,5	12,2	14,0	14,9	17,1	14,9	17,1
20000	21	40	15,0	17,0	13,5	15,3	16,5	18,7	16,5	18,7
22000	21	40	16,5	18,5	14,9	16,7	18,2	20,4	18,2	20,4
24000	21	40	18,0	20,0	16,2	18,0	19,8	22,0	19,8	22,0
18000	41	53	9,0	11,0	8,1	9,9	9,9	12,1	9,9	12,1
20000	41	53	10,0	12,0	9,0	10,8	11,0	13,2	11,0	13,2
22000	41	53	11,0	13,0	9,9	11,7	12,1	14,3	12,1	14,3
24000	41	53	12,0	14,0	10,8	12,6	13,2	15,4	13,2	15,4

Cutting values for dia. 18 mm
Material			Soft and light wood		Compact and hard wood		MDF		Chipboard
n	a_pmin.	a_pmax.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.
18000	1	18	17,0	19,0	15,3	17,1	18,7	20,9	18,7	20,9
20000	1	18	18,9	20,9	17,0	18,8	20,8	23,0	20,8	23,0
22000	1	18	20,8	22,8	18,7	20,5	22,9	25,1	22,9	25,1
24000	1	18	22,7	24,7	20,4	22,2	24,9	27,1	24,9	27,1
18000	19	36	12,7	14,7	11,5	13,3	14,0	16,2	14,0	16,2
20000	19	36	14,2	16,2	12,7	14,5	15,6	17,8	15,6	17,8
22000	19	36	15,6	17,6	14,0	15,8	17,1	19,3	17,1	19,3
24000	19	36	17,0	19,0	15,3	17,1	18,7	20,9	18,7	20,9
18000	37	53	8,5	10,5	7,6	9,4	9,3	11,5	9,3	11,5
20000	37	53	9,4	11,4	8,5	10,3	10,4	12,6	10,4	12,6
22000	37	53	10,4	12,4	9,3	11,1	11,4	13,6	11,4	13,6
24000	37	53	11,3	13,3	10,2	12,0	12,5	14,7	12,5	14,7

Cutting values for dia. 16 mm
Material			Soft and light wood		Compact and hard wood		MDF		Chipboard
n	a_pmin.	a_pmax.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.
18000	1	16	16,0	18,0	14,4	16,2	17,6	19,8	17,6	19,8
20000	1	16	17,8	19,8	16,0	17,8	19,6	21,8	19,6	21,8
22000	1	16	19,6	21,6	17,6	19,4	21,5	23,7	21,5	23,7
24000	1	16	21,3	23,3	19,2	21,0	23,5	25,7	23,5	25,7
18000	17	33	12,0	14,0	10,8	12,6	13,2	15,4	13,2	15,4
20000	17	33	13,3	15,3	12,0	13,8	14,7	16,9	14,7	16,9
22000	17	33	14,7	16,7	13,2	15,0	16,1	18,3	16,1	18,3
24000	17	33	16,0	18,0	14,4	16,2	17,6	19,8	17,6	19,8

Cutting values for dia. 12 mm
Material			Soft and light wood		Compact and hard wood		MDF		Chipboard
n	a_pmin.	a_pmax.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.	v_c min.	v_c max.
18000	1	12	13,0	15,0	11,7	13,5	14,3	16,5	14,3	16,5
20000	1	12	14,4	16,4	13,0	14,8	15,9	18,1	15,9	18,1
22000	1	12	15,9	17,9	14,3	16,1	17,5	19,7	17,5	19,7
24000	1	12	17,3	19,3	15,6	17,4	19,1	21,3	19,1	21,3
26000	1	12	18,8	20,8	16,9	18,7	20,6	22,8	20,6	22,8
28000	1	12	20,2	22,2	18,2	20,0	22,2	24,4	22,2	24,4
30000	1	12	21,7	23,7	19,5	21,3	23,8	26,0	23,8	26,0
18000	13	24	9,7	11,7	8,8	10,6	10,7	12,9	10,7	12,9
20000	13	24	10,8	12,8	9,7	11,5	11,9	14,1	11,9	14,1
22000	13	24	11,9	13,9	10,7	12,5	13,1	15,3	13,1	15,3
24000	13	24	13,0	15,0	11,7	13,5	14,3	16,5	14,3	16,5
26000	13	24	14,1	16,1	12,7	14,5	15,5	17,7	15,5	17,7
28000	13	24	15,2	17,2	13,6	15,4	16,7	18,9	16,7	18,9
30000	13	24	16,2	18,2	14,6	16,4	17,9	20,1	17,9	20,1
18000	25	40	6,5	8,5	5,8	7,6	7,1	9,3	7,1	9,3
20000	25	40	7,2	9,2	6,5	8,3	7,9	10,1	7,9	10,1
22000	25	40	7,9	9,9	7,1	8,9	8,7	10,9	8,7	10,9
24000	25	40	8,7	10,7	7,8	9,6	9,5	11,7	9,5	11,7
26000	25	40	9,4	11,4	8,4	10,2	10,3	12,5	10,3	12,5
28000	25	40	10,1	12,1	9,1	10,9	11,1	13,3	11,1	13,3
30000	25	40	10,8	12,8	9,7	11,5	11,9	14,1	11,9	14,1
