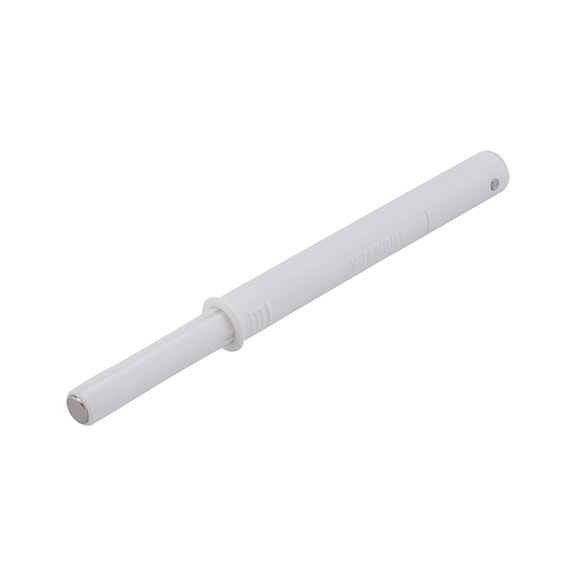

Long magnetic push latch

Magnetic push latch long
AY-PRESS-MAGNET-CLOSER -HNGE-LONG-WHITE

Art.-no. 0683439198
EAN 4065746530422

Prices for customers after login
Long magnetic push latch

Art.-no. 0683439198

Prices for customers after login
Quantity
PU
x 10 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

The doors open at a convenient angle when light tapped on the front
  • Suitable for all hinges without automatic closing mechanism

  • Large magnetic range

  • Doors close safely

  • Compensation of front gap of +/- 3 mm with integrated, self-locking and tool-less depth adjustment

  • Installed in the cabinet front or an adapter plate is used

  • No drilling required on the door
Notice

The element is mounted opposite the hinge, either via a front-facing hole in the furniture body or with the adapter plates, which are available in different colours.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Material

Polyoxymethylene / Polyamide / Steel

Colour

White

Diameter

10 mm

Length

80

Stroke length

37 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Counterplate for magnetic push latches

CNTPLT-F.CLSR-MAGN-ST-(ZP)

x 50 pcs
Counter plate with double-sided 3M adhesive tape

CNTPLT-F.HNGE

x 50 pcs
