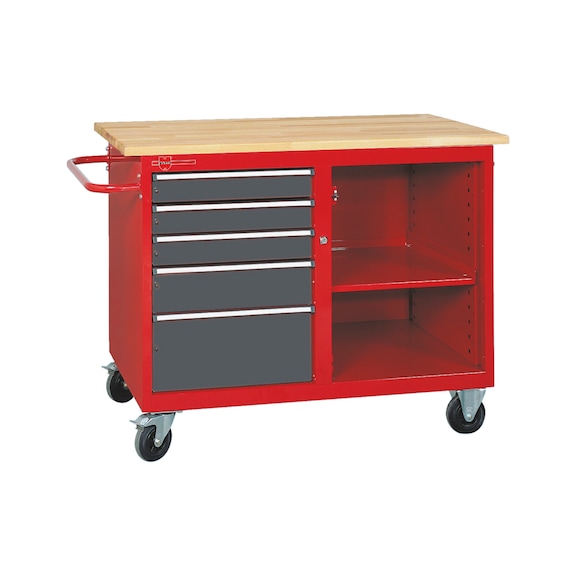

MW mobile assembly workbench - WRKSHPTRLY-MW 3

MW mobile assembly workbench

Mobile assembly workbench MW
WRKSHPTRLY-MW 3

Art.-no. 0962610103
EAN 4045727329832
All versions

Prices for customers after login
MW mobile assembly workbench

Art.-no. 0962610103

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Extremely robust and spacious assembly workbench for professional workshop applications
  • Solid sheet metal design

  • External dimensions incl. handle (W x D x H): 1260 x 925 x 600 mm

  • Total load: 450 kg

  • Working height: 885 mm

  • Central locking with cylinder lock for drawers and door

  • Each drawer is secured against opening by itself

  • Roller-mounted partially extending drawers, loadable up to 30 kg

  • Robust side handle

  • Wheels produced from rubber, steering wheels ∅ 125 mm (two with locking brake), running wheels ∅ 125 mm

  • Solid copper beech panel, bar type, glued, oiled

  • Dimensions of worktop: 1200 x 25 x 600 mm (W x H x D)
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Type description

MW3

Number of drawers

5 PCS

Drawer design

3 drawers, W 459 x D 535 x H 65 mm
1 drawer, W 459 x D 535 x H 115 mm
1 drawer, W 459 x D 535 x H 202 mm

Width x height x depth

1260 x 925 x 600 mm

Load capacity

450 kg

Material

Sheet steel

Surface

Lacquered

Number of rolls

4 PCS

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Set of box inserts for mobile assembly workbench
Set of box inserts for mobile assembly workbench

INRTBOX-SET-(F.ASMBY-WRKBENCH)-17PCS

Practical drawer divider with various compartments for small parts.
x 1 pcs
The packaging unit defines the number of articles in one packaging. In the catalog segment you can choose from different packaging units if a pop-up menu is displayed.

Just leave the field empty if you don't know the packaging unit when directly entering the article number in the shopping basket or when importing with Easy-/VarioScan. The packaging unit will be determined automatically.
The article number is made up of the following: VVVVAAABBB
VVVV = 4 digits for prefix number (please note that the first digit is currently always 0)
AAA = 3 digits for dimension part 1
BBB = 3 digits for dimension part 2

Example article number structures:
Example 1: Screw with dimensions of 4x10 mm:
VVVVAAABBB
00574 10 (2 spaces between the 4 and the 10)

Example 2: Screw with dimensions of 10x20 mm:
VVVVAAABBB
005710 20 (1 space between the 10 and the 20)

Example 3: Flat washer with an internal diameter of 6 mm:
VVVVAAABBB
04076
Price per packaging unit (PU):
The displayed price is always in line with the displayed packaging, if the PU is 250 the price for 250 units, if the PU is 300 the price for 300 units.

Price with price key representation (PSL):
The price always applies to a quantity ruled through the price key:
Price for 1 unit
Price for 100 units
Price for 1000 units
The quantity shows the number of pieces or units of measure contained in the order or delivery for the respective article.
In contrast to sales packaging and secondary packaging, the disposal costs for chemical-technical products are shown separately. The breakdown of the individual costs can be found on the relevant products and also in the shopping cart, as well as in our General Terms and Conditions (GTC).
Spare parts for this product:
Lever locking system With central lock
Lever locking system With central lock

LEVRLOK-(F.WRKSHPTRLY-M5/6/7/8/9)

x 1 pcs
Rail For mobile assembly workbench
Rail For mobile assembly workbench

RL-(F.ASMBY-WRKBNCH-SL_SMALL)-MOB

One pair suitable for hanging
x 1 pcs
Rail For mobile assembly workbench
Rail For mobile assembly workbench

RL-(F.ASMBY-WRKBNCH-SL_BIG)-MOB-PX

One pair suitable for hanging
x 1 pcs
