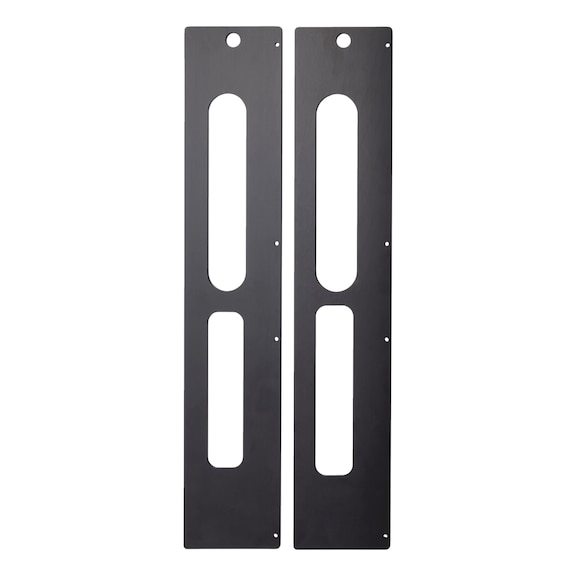

Milling jig - CARRPLT-(F.RECESHNGE-SPIRIT240)

Milling jig

Carrier plate for Spirit
CARRPLT-(F.RECESHNGE-SPIRIT240)

Art.-no. 0689396113

EAN 4061975689054

All versions

Individual price display after login
Milling jig

Art.-no. 0689396113

Individual price display after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

For a precise finish of Spirit concealed hinges
  • Complementary product for milling Spirit hinges on (hinged) doors and frames

Dimensions are approximate and subject to possible modifications. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Inset doors for bedrooms, toilets/bathrooms or entrances

Suitable for

Spirit 240

Material

Plastic

Colour

Black

Diameter of stop ring

30 mm

Milling cutter diameter

16 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Universal milled frame
Universal milled frame

MILFRM-UNIVERSAL-VLB-SPIRIT

Universal use for many moulds
x 1 pcs
