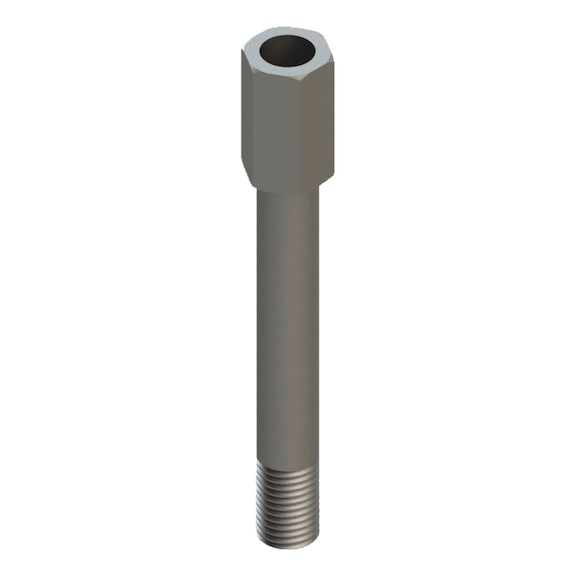

Mounting screw DIN 3017-2, type AS, W.TEC series
DIN 3015-2 S steel plain W.TEC series
STCKBLT-DIN3015/2-AS-W1-SZ4
Art.-no. 4499027400
EAN 4056807771915
Individual price display after login
Exclusively for trade customers
Register now and access more than 125,000 products
Mounting screws can be used to mount several clamp bodies of the same size according to DIN 3015 on top of each other
 | |
Nominal size according to DIN | 4 |
Thread type x nominal diameter (d6) | M12 |
Length (l) | 81 mm |
Length of head (L2) | 27 mm |
Thread length (metric thread) (L3) | 80 mm |
Width across flats (SW) | 17 mm |
DIN | 3015-2 |
Material | Steel |
Surface | Plain |
Product information
