Nova Pro Scala F8 Crystal inner panel
Interior panel profile F8 Nova Pro Scala Crystal
INPAN-(NP-SCALA-F8-CRYSTAL)-ICE
Register now and access more than 125,000 products
- Can be used with frame H186 and Crystal Plus
- Low part complexity
- Simple installation
- Insert 6 mm made of variable material
- No need to drill the push-in components
- Colour coordinated with Nova Pro Scala
- Same dimensions as standard drawers (internal depth)
- For cutting to length
Recommend front floor connector from width 600 mm
Recommend stabiliser from width 600 mm
- 1.: Upright (front holder) for F8 Crystal internal panel. Set: with pre-assembled cover cap, suspension hook and front holder, one each on left/right
- 2.: Concealed drawer front for F8 Crystal concealed drawer front

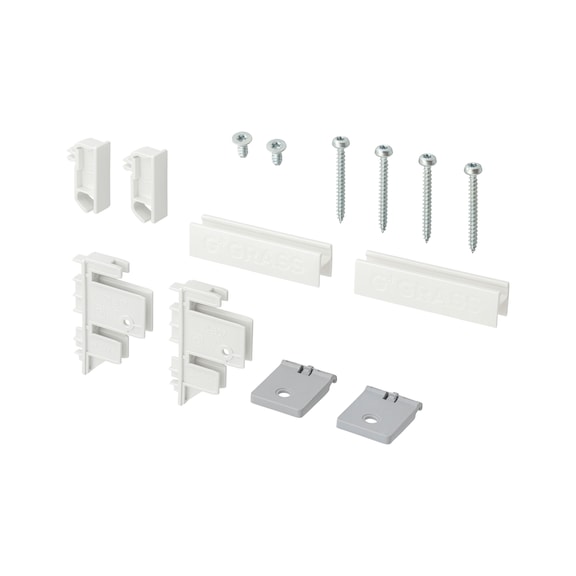

- 3.: F8 Crystal concealed drawer frontaccessories for inset drawer H186 and Crystal Plus. Set: 2 x profile adapters, 4 x profile screws, 2 x special screws, 2 x stabilisers, 2 x front floor connectors and 2 x spacers (used for push-in element height 121 mm)
Datasheets(X)
 | |
Material | Polyoxymethylene |
Colour | Ice |
Suitable for drawer side | Nova Pro Scala Crystal Plus, Nova Pro Scala H186 |
| Legend | |||||
| BB | Base width | KB | Cabinet width | MET | Minimum installation depth |
| EB | Installation width | KV | Front edge of cabinet | NL | Nominal length |
| H | Height | L | Length | RWB | Back panel width |
| IBB | Inner panel width | LWK | Clear width of cabinet | ||
