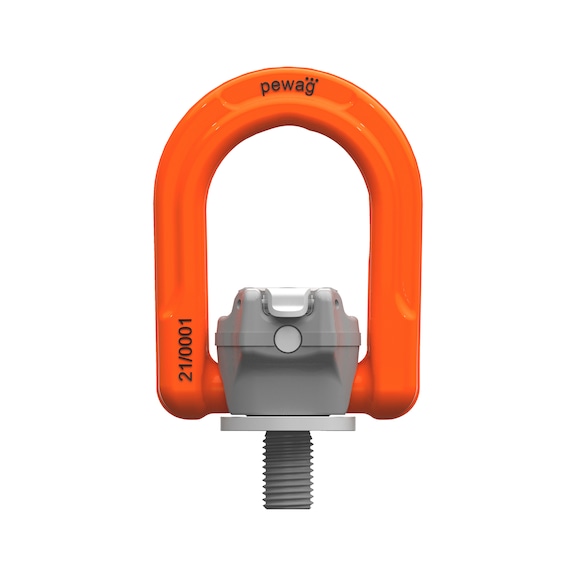

PLOW sling swivel
Sling swivel Pewag PLOW
ATTCHSWIV-PLOW-0,8T-M10X15
Register now and access more than 125,000 products
- Ball bearing enables rotation even under load
- Patented
- Tightening torque stamped on
- Tool-free installation and removal
- 360° rotation (adjustable in load direction)
- Ring can be swivelled 180°
- 100 % crack-tested screw, corrosion-protected
- Sleeve protects the load's contact surface
- Serial number
- Safety factor of 4 protects against breakage
- Thread sizes from M8 to M24; load capacities 0.4 to 4.7 t
- Operating temperature -20 °C to 200 °C without reduction
Datasheets(X)
 | |
Load-carrying capacity | 0.8 t |
Thread type x nominal diameter (d1) | M10 |
Thread length (l1) | 15 mm |
Material | Steel |
Surface | Lacquered |
Internal diameter (d2) | 40 mm |
Bracket width (d3) | 65 mm |
Body height (h3) | 34 mm |
Interior height (h2) | 34 mm |
Height (h1) | 88 mm |
Bracket diameter (s1) | 15 mm |
Thickness (b1) | 12 mm |
Internal drive (is) | HS8 |
Max. torque | 15 Nm |
Product weight (per item) | 450.000 g |
