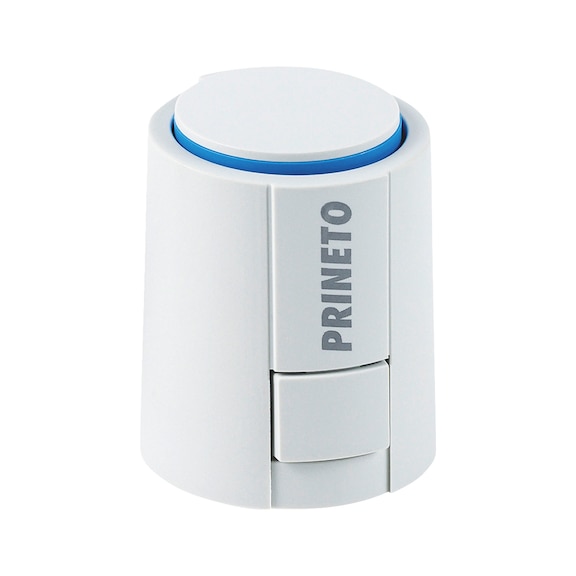

PRINETO actuator
PRINETO actuator
ACTUATOR-PRINETO-230V
Art.-no. 0878386018
EAN 4057708226009
Register now and access more than 125,000 products
- For controlling underfloor heating
- Mounted on the thermostat valve insert on the heat circuit manifold using a clip adapter
- With position indicator
- Normally closed
- First Open function
Datasheets(X)
Connection thread | M30 x 1.5 |
Diameter | 44.3 mm |
Min./max. frequency | 50 / 60 Hz |
Length | 60 mm |
Width | 48.4 mm |
Cable length | 1 m |
Min. frequency | 50 Hz |
Max. frequency | 60 Hz |
Power input | 1 W |
Nominal voltage | 230 V/AC |
IP protection class | IP 54 |
Number of pieces | 1 PCS |
Material | PA - Polyamide |
Colour | Light grey (bright grey) |
Product weight (per item) | 124.000 g |
