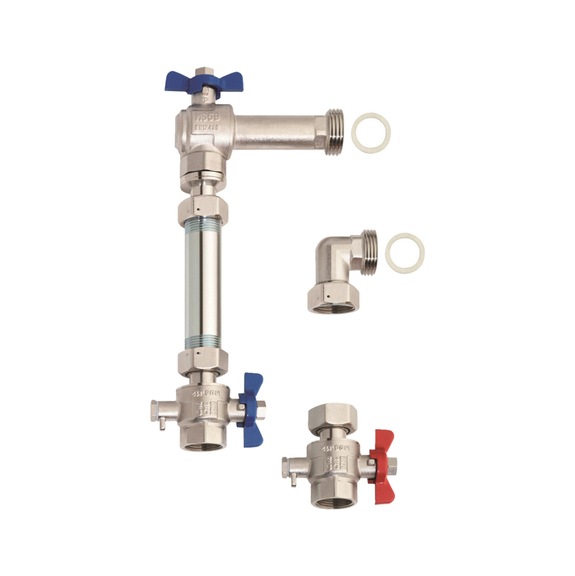

PRINETO connection assembly for heat meter and vertical regulating valve
PRINETO conn. assembly heat meter a. RV vertical
CONGRO-HTM-DDR-DN20-VERTL
Art.-no. 0878386362
EAN 4099618612121
Register now and access more than 125,000 products
- PRINETO connection assembly for MID-compliant vertical heat meter and balancing valve
- Supply flow ball valve with red handle, return flow ball valve with blue handle
- Ball valve each with installation point for direct measurement sensors
Datasheets(X)
Connection thread | G 1 inch, IT Rp 3/4 inch |
Number of connections | 2 |
Height | 276 mm |
Length | 135 mm |
Suitable for plastic pipes (Prineto) | DN.. 20.. |
Max. operating pressure | 10 bar |
Conditions for operating pressure | Application class 4 |
Min. temperature conditions | 0 °C |
Max. temperature conditions | 70 °C |
Number of pieces | 7 PCS |
Material | Aluminium / brass |
Surface | Nickel plated |
Colour | Nickel coloured |
