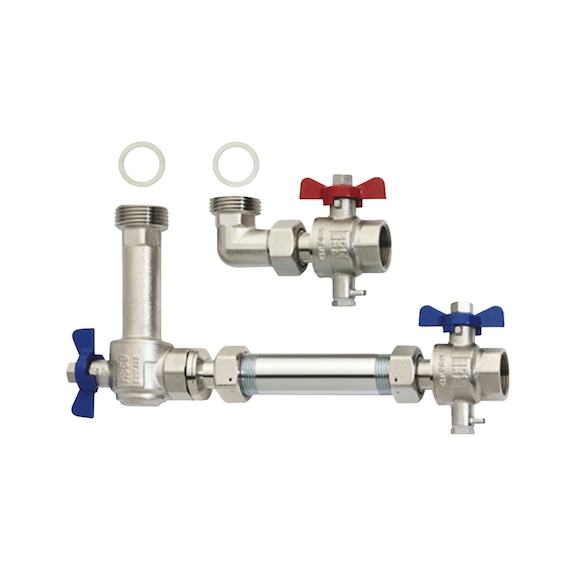

PRINETO connection assembly for vertical heat meter
PRINETO connection assembly f. heat meter
CONGRO-HTM-MIDCONF-1IN-VERTL
Art.-no. 0878386377
EAN 4099618612114
Register now and access more than 125,000 products
- PRINETO connection assembly for MID-compliant vertical heat meter
- Supply flow ball valve with red handle, return flow ball valve with blue handle
- Ball valve each with installation point for direct measurement sensors
Datasheets(X)
Connection thread | G 1 inch, IT Rp 1 inch |
Number of connections | 2 |
Height | 308 mm |
Length | 110 mm |
Suitable for plastic pipes (Prineto) | DN.. 20.. |
Max. operating pressure | 10 bar |
Conditions for operating pressure | Application class 4 |
Min. temperature conditions | 0 °C |
Max. temperature conditions | 70 °C |
Number of pieces | 7 PCS |
Material | Aluminium / brass |
Surface | Nickel plated |
Colour | Nickel coloured |
Product weight (per item) | 2163 g |
