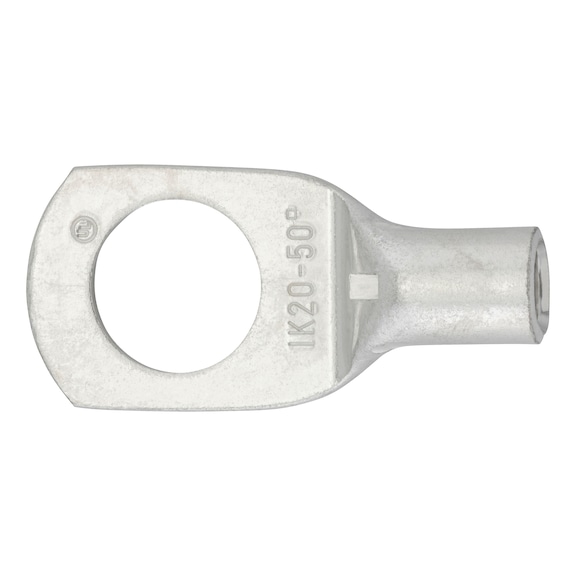

Pipe cable lug with inspection hole - TUBCBLLUG-INSPHO-CU-(J2N)-M20-50SMM

Pipe cable lug with inspection hole

Name: Pipe cable lug with inspection hole
Brand: Würth
SKU: 096725020

Tubular cable lug with inspection hole (common)
TUBCBLLUG-INSPHO-CU-(J2N)-M20-50SMM

Art.-no. 096725020

EAN 4058794219371

All versions

Similar products

Prices for customers after login

Pipe cable lug with inspection hole

Art.-no. 096725020

Prices for customers after login

Quantity

x 50 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Common (similar to DIN)

Notice

The user must check the inserted cable (by means of a pull-out test, if necessary).

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For multi-strand round conductors e.g. in accordance with DIN EN 60228 Class 2 and 5

For round-pressed sector-shaped cables


Wire cross section	50 mm²
Flange hole	M20
Wire diameter (d1)	10 mm
Diameter of hole (d2)	21 mm
Distance between sleeve end and centre of hole (e)	46 mm
Sleeve length (a)	19 mm
Width (b)	30 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin plated

Additional accessory:

Product

Description

Quantity

Price
/PU

Mechanical manual crimping pliers

CRMPPLRS-(HEX-CRMP)-WK05-(6-50SMM)

Art.-no. 096705

Hexagon crimping

x 1 pcs

Mechanical manual crimping pliers

CRMPPLRS-(HEX-CRMP)-WK06-(10-120SMM)

Art.-no. 096706

Hexagon crimping

x 1 pcs

Mechanical manual crimping pliers WK 22 For replaceable half-shell crimping inserts, width 22 mm

HNDCRMPTL-MECH-(6-300SMM)

Art.-no. 0967080100

x 1 pcs

Hydraulic crimping tool, WHK 60/22 For half-shell crimping inserts, width 22 mm

CRMPTL-HYDR-WHK60/22-(6-300SMM)

Art.-no. 0967080120

x 1 pcs

Half-shell hexagon crimping insert

CRMPINRT-F.HEX-50SMM

Art.-no. 0967082050

22 mm wide

x 1 pcs
