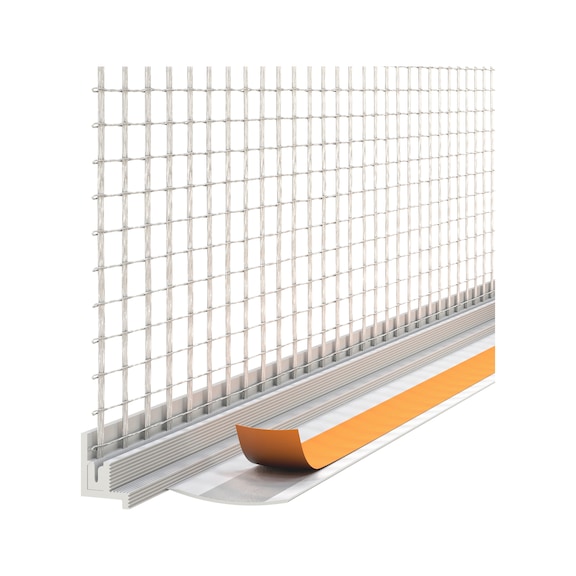

Plastering border with shadow gap and fabric one piece
RENDBEAD-MSH-SHADOWGAP-6MM-L2,4M
Art.-no. 0519550624
EAN 4052703472109
Register now and access more than 125,000 products
Shadow gap
- Neat finish (only about 1 mm of the white edge visible)
- Protects the foam tape
Coextruded mesh: Allows secure and permanent attachment of the mesh.
Supported removal tab prevents the profile from tilting.
Two noses (9 mm wide)
- Simplifies smoothing the reinforcement and plaster layers
- Reinforcing mesh positioned in upper third of reinforcement adhesive
Important! This bead is not part of the VDPM guideline.
Datasheets(X)
For sealing window and door joints in ETICS against driving rain.
 | |
Material of profile | PVC-U, impact resistant |
Width | 6 mm |
Min. motion absorption | 2 mm |
Material of mesh | Fibre glass |
Fabric type | ETICS fabric |
Fabric weight per m2 | 165 g |
Mesh size | 4 x 4 mm |
Building material class | B2 - Normally inflammable |
Ultraviolet resistance | UV-stabilised |
Resistance against | Weather |
Length | 2.4 m |
Material of foam | Closed-cell PE foam |
