Plastic cover cap for aluminium bracket

Name: Plastic cover cap for aluminium bracket
Brand: Würth
SKU: 4952500017

Cover cap for aluminium bracket plastic
CAP-B-PA-BLCK-ALUANGL-45

Art.-no. 4952500017

EAN 4066783124919

All versions

Specification

For the right-angled connection of profiles and surface elements

The open side of the bracket can be closed by the cover cap

Notice

The open side of the bracket can be closed by the cover cap

Technical information


Material	PA GF - Polyamide glass fiber reinforced
Colour	Black
Design	For alu connection angle 45
RoHS-compliant	Yes
Profile type	B
Suitable for min./max. flute width	8-10 mm

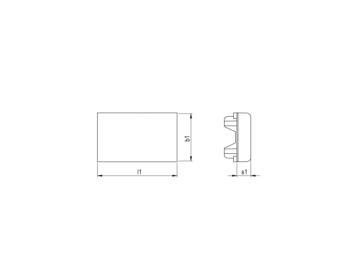

Length (l₁)	63.75 mm
Width (b₁)	42.25 mm
Thickness (s₁)	4 mm
Product weight (per item)	9.0 g

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Required accessory:

Product

Description

Quantity

Price
/PU

Aluminium bracket

ANGL-AL-BLK-SLOT10-41X41X42MM

Art.-no. 4952500109

For the right-angled connection of two profiles and surface elements

x 20 pcs
