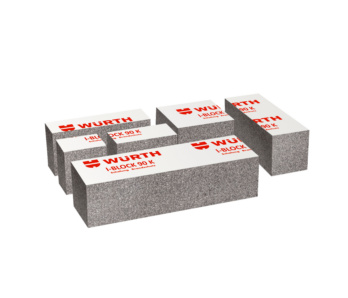

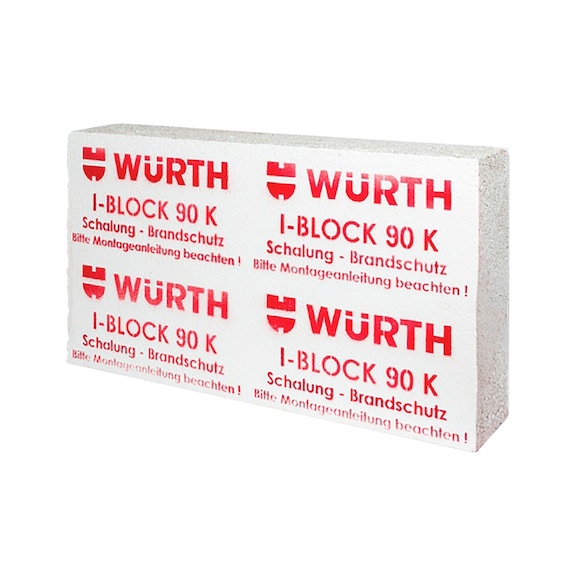

I-Block 90 K ceiling panel
For partitioning electrical wires and flammable/non-flammable pipes as well as ventilation in accordance with DIN 18017-3 and DIN EN 15650
Exclusively for trade customers
Register now and access more than 125,000 products
Variants
Exclusively for trade customers
Register now and access more than 125,000 products

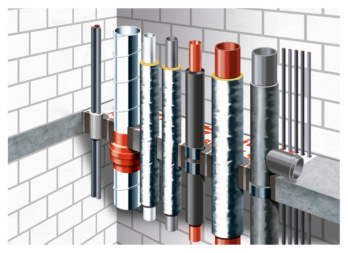

- Partition system for partitioning electrical wires and flammable/non-flammable pipes as well as ventilation in accordance with DIN 18017-3 and DIN EN 15650
- Meets the requirements for increased acoustic insulation in accordance with DIN 4109 Sheet 2
- Formwork aid and temporary non-slip ceiling closure during the construction period
Notice
- Non-slip properties of I-Block 90 K (concreted, undrilled condition) are tested by the state inspection/supervision body in Villach

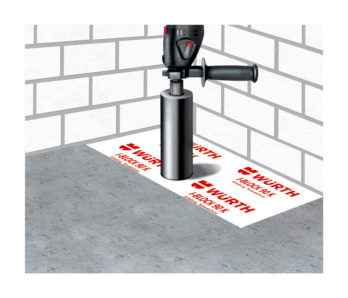

- Damaged areas, saw cuts, drill holes and cut edges must be touched up with ablative coating on both sides.
- General type approval aBG Z-19.53-2669
- Non-slip properties tested by the state inspection/supervision body in Villach No. 0222/19 HE/Ra
- Acoustic insulation test DIN EN ISO 10140 test certificate 91313 - 05
I-Block assembly scrap: Disposal in mixed construction waste containers (mixed construction/demolition waste) in accordance with Waste Catalogue Ordinance AVV No. 170904
Application area

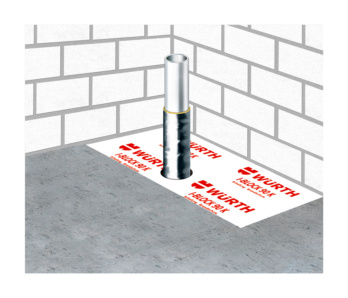

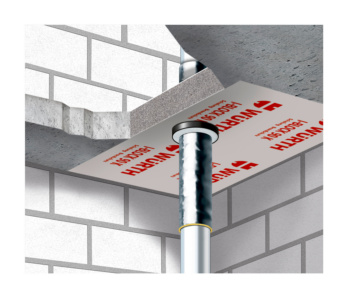

For use in the [W2] I-Block 90 K combination ceiling partition system
Tested block size: L x W 1.0 m x 0.55 m
Instructions

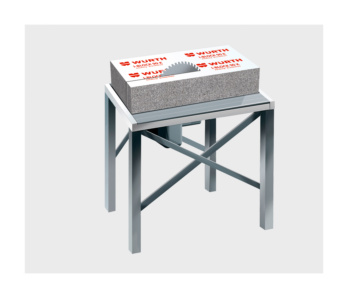

- Cut I-Block 90 K to the size of the planned ceiling cut-out

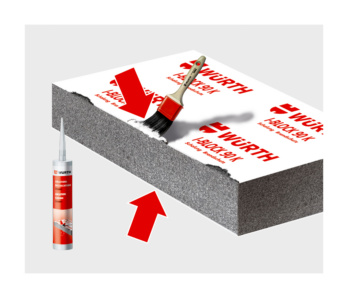

- Touch up damaged areas and cut edges with ablative coating

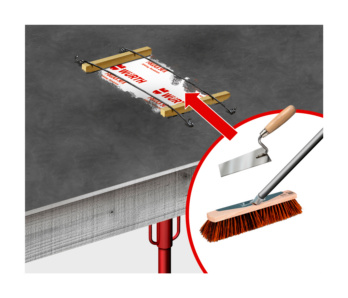

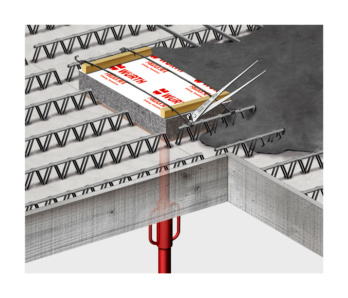

- Secure I-Block 90 K on the ceiling formwork (e.g. using binding wire on the reinforcement)

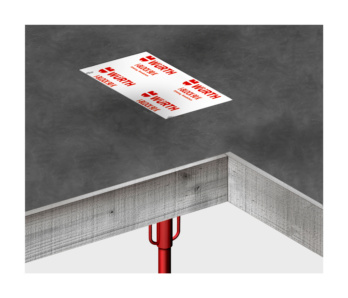

- Remove formwork after concrete casting
