Single anchor point for concrete With 360° fixing bolt anchor

The images are examples. For detailed information, other images and documents, please select individual articles from the following table.

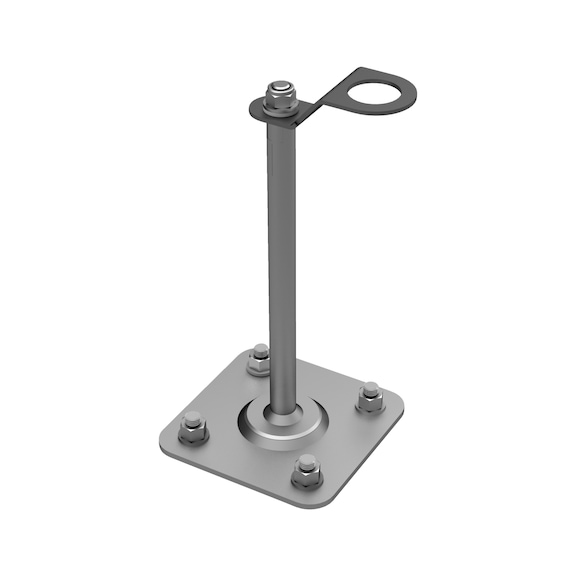

Single anchor point for concrete With 360° fixing bolt anchor

Fall arrester system with integrated fall indicator for quick and easy installation in concrete by way of the tried-and-tested Würth anchor technology

See product details

Available in 9 versions

Prices for customers after login

Exclusively for trade customers

Register now and access more than 125,000 products

Variants

Exclusively for trade customers

Register now and access more than 125,000 products

Call customer service:

Prices for customers after login

  • 360° rotating anchor eye

  • The integrated fall indicator on the anchor point indicates a fall

  • Can be used as an intermediate or end/corner support (43 mm diameter) in safety harness systems

  • Can be delivered in different rod lengths

  • Reduced force transmission to the structure through defined plastic deformation in the event of a fall

  • Resistant to corrosion and weathering: The single anchor point is made from stainless steel (at least grade A2)
Notice
  • Anchoring of the single anchor point in concrete (minimum requirement C20/25) with Würth W-FAZ/A4 M10 x 90 fixing bolt anchor

  • Fastening material is included in the scope of delivery (except mortar compound)

  • Observe the installation instructions and approvals for the fasteners and single anchor point.
  • European Technical Assessment (ETA) 20/0965

  • Also certified in accordance with DIN EN 795:2012 Type A (tests for deformation, static and dynamic strength and integrity) and CEN/TS 16415
