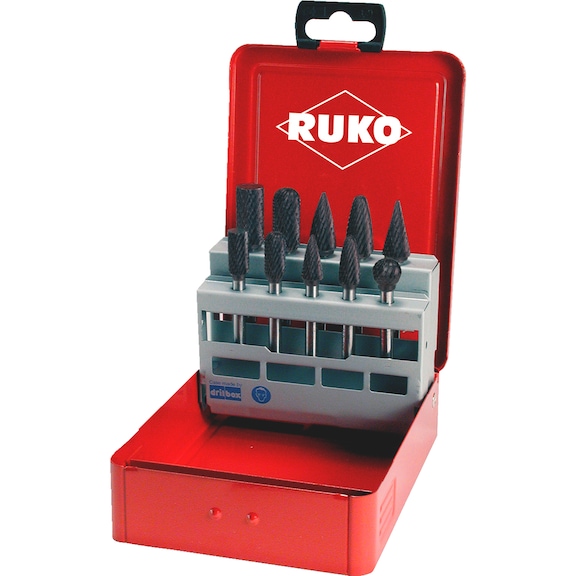

Milling bit assortment/set Ruko 116003TC 10 pieces TiCN
Like carbide milling tips, with titanium-carbon-nitride coating
Register now and access more than 125,000 products
Variants
Register now and access more than 125,000 products
The surface hardness of the tool is increased by the TiCN wear protection coating to approx. 3000 HV/micro-hardness and the heat resistance up to 400°C. This increases service life and productivity.
- 2 x type A cylinder (ZYA) without spur cut, dia. D1 10.0/12.0 mm
- 2 x type C rounded roller (WRC), dia. D1 10.0/12.0 mm
- 2 x type G ogival (SPG), dia. D1 10.0/12.0 mm
- 2 x type F round arc (RBF), dia. D1 10.0/12.0 mm
- 1 x type M tip cone (SKM), dia. D1 12.0 mm
- 1 x type D spherical (KUD), dia. D1 12.0 mm
For high-alloy, rust-resistant, acid-resistant and heat-resistant steels, cast iron and plastics.
For deburring, edge breaking, plaster and welding seam processing and surface processing.
